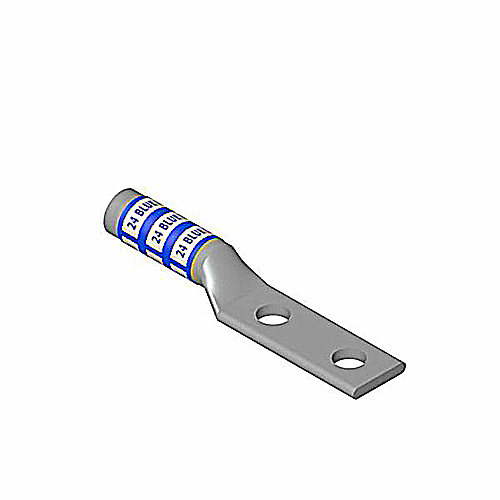

ABB 54876BE Copper Long Barrel Connector 35kV (500 kcmil) Replacement MPN

Product Description

The ABB 54876BE Copper Long Barrel Connector is designed for reliable electrical connections. This connector handles a voltage rating of thirty-five kilovolts and is suitable for a wire size of five hundred kcmil. It features a two-hole design for enhanced connection stability.

• Two-hole non-insulated compression lug
• Constructed from high conductivity copper
• Tin plated for corrosion resistance

Product Highlights

This compression lug uses a color-coded system for easy association with appropriate tools and dies.

Product Information

Standard Information

• Brand: ABB
• MPN: 54876BE

Technical Specifications

• Type: Two-Hole Non-Insulated
• Color: Brown
• Material: Copper
• Voltage Rating: 35 kV
• Wire Size: 500 kcmil
• Stud Size: 1/2 inch
• Overall Length: 6 inches
• Barrel Diameter: 1.1 inches
• Tongue Size: 3 inches L x 1.61 inches W x 0.22 inches THK
• Die Code: 87
• Standards: CSA C22.2 File No. 65/04, UL 486A/467
