ABB 54874BE Thomas & Betts 2-Hole Non-Insulated Compression Lug 400 kcmil Copper Conductor Replacement MPN

Product Description

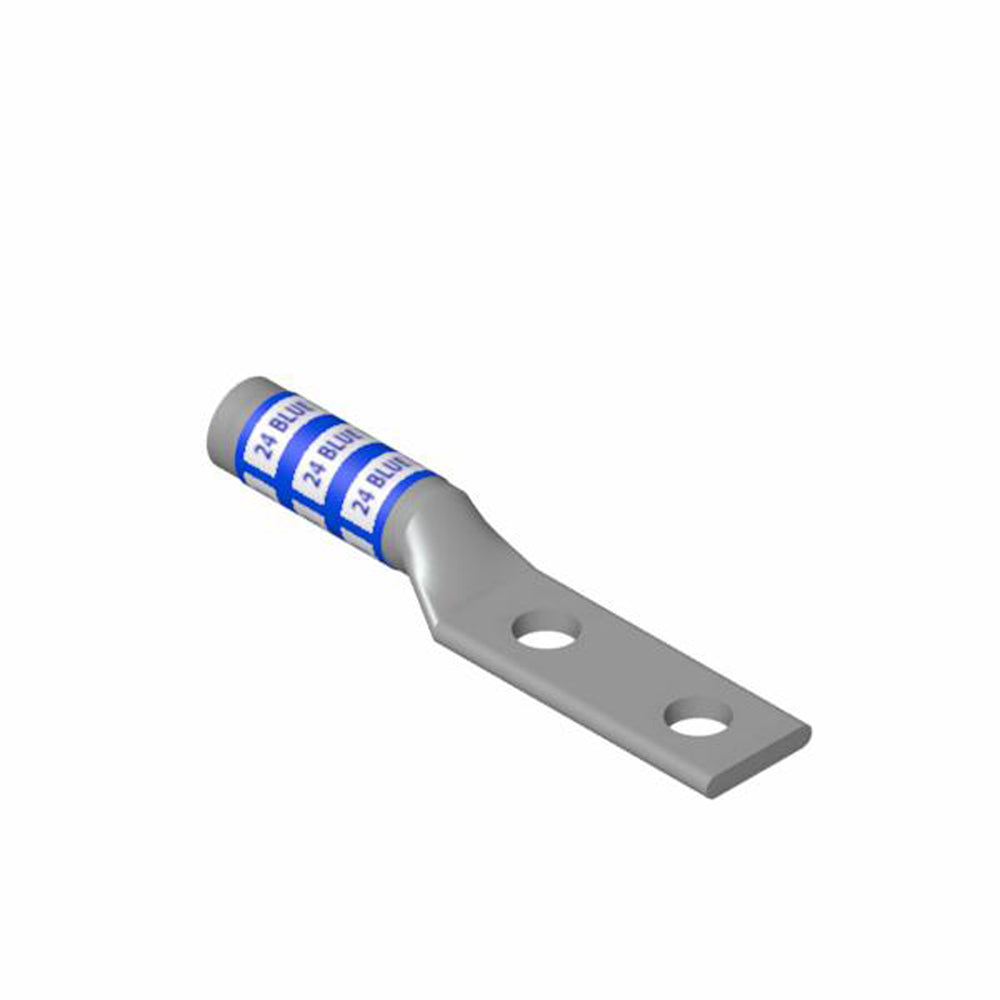

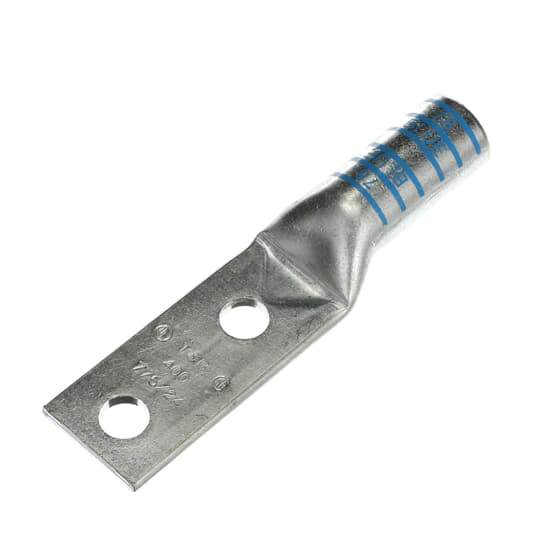

The ABB 54874BE is a two-hole compression lug made of copper. It accommodates a wire size of four hundred kcmil. This long barrel lug has a blind end design and is intended for use with a half-inch bolt size. It is tin-plated to enhance performance and reduce corrosion.

• Max voltage rating: thirty-five kV.
• Die code: 76 for identification.
• Overall length: five point five one inches.

Product Highlights

Designed for reliable electrical connections in high voltage applications. The Color-Keyed® compression system ensures accuracy when crimping with corresponding tools. Features two holes for stud connections.

Product Information

Standard Information

• Brand: ABB
• Material: Copper

Technical Specifications

• Type: Two-hole non-insulated
• Color: Blue
• Voltage Rating: 35 kV
• Conductor Size: 400 kcmil
• Stud Size: 1/2 in
• Barrel Size: 0.96 in Dia
• Overall Length: 5.51 in
• Tongue Size: 3 in L x 1.41 in W x 0.17 in THK
• Mounting Hole Size: 0.531 in
• Die Code: 76
• Standards/Approvals: UL 486A|UL 467|CSA C22.2 File No. 65/04
