Product Description

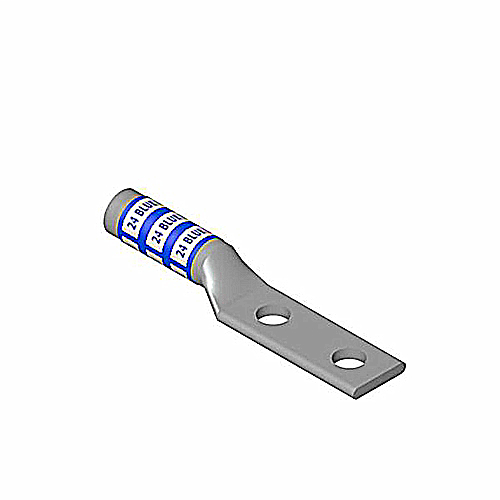

The ABB Copper Long Barrel Connector, MPN 54872BE, is designed for reliable electrical connections. This connector is part of the Color-Keyed® compression system, ensuring secure crimping on copper conductors. It is made for a wire size of 350 kcmil and features a long barrel design for effective conductivity.
- Rated for 35 kV voltage
- Stud size of one half inch
- Tin plated for corrosion resistance
Product Highlights
This connector supports a high degree of reliability in electrical wiring, making it suitable for both professional electricians and contractors.
Product Information
Standard Information
Technical Specifications
-
Type: 2-Hole Non-Insulated
-
Material: Copper
-
Barrel Size: 0.93 inches diameter
-
Tongue Size: 3 inches long x 1.36 inches wide x 0.18 inches thick
-
Overall Length: 5.4 inches
-
Die Code: 71
-
Mounting Hole Size: 0.531 inches
-
Stud Size: 0.5 inches
-
Specifications: 1-3/4 inches stud hole spacing
-
Application: Electrical wiring
-
Standards/Approvals: UL 486A|UL 467|CSA C22.2 File No. 65/04
