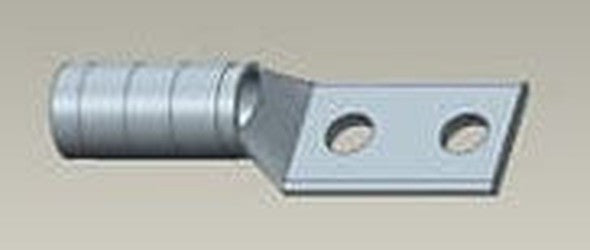

ABB 54868BEPH T&B L. Barrel 2 Hole Blind End

Product Description

The ABB 54868BEPH is a 2-Hole Non-Insulated Compression Lug. It is designed for copper conductors with a size of 250 kcmil. This product features a color-coded compression system to ensure proper crimping. It provides a reliable electrical connection in various applications.

• Designed for copper conductors
• Utilizes a color-coded compression system
• Specifications include a barrel size of 0.77 inches diameter

Product Highlights

Reliable connection in electrical wiring applications using a simple crimping method.

Product Information

Standard Information

• Brand: ABB - Installation Products
• UPC: 78621023192

Technical Specifications

• Application: For providing a high degree of reliability in electrical wiring
• Barrel Size: 0.77 inches diameter
• Color: Yellow
• Conductor Size: 250 kcmil
• Conductor Type: Copper
• Die Code: 62
• Manufacturer Part Number: 54868BEPH
• Material: Copper
• Mounting Hole Size: 0.531 inches
• Series: 54800
• Specifications: 1-3/4 inches stud hole spacing, tin plated
• Standards/Approvals: CSA Certified, UL File No. E9809
• Stud Size: 1/2 inches
• Tongue Size: 3 inches long x 1.13 inches wide x 0.14 inches thick
• Tongue Type: Straight
• Type: 2-Hole Non-Insulated
• Voltage Rating: 35 kV
