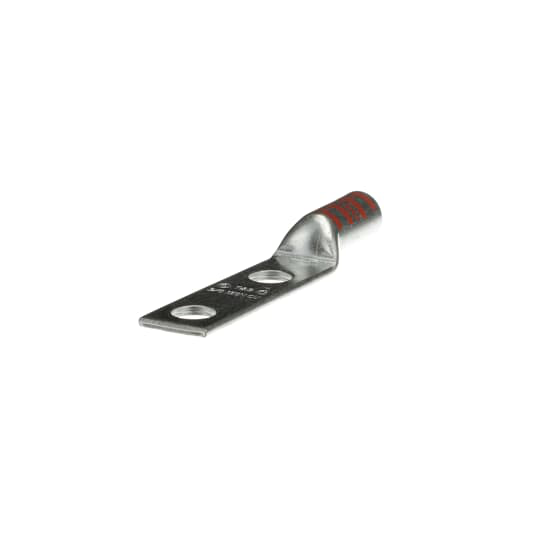

ABB 54864BE Thomas & Betts 2-Hole Long Barrel 3/0 AWG Compression Lug

Product Description

The ABB 54864BE is a copper compression lug designed for electrical connections. It is a two-hole, long barrel lug suitable for wire sizes of three-ought American wire gauge (3/0 AWG). The lug features a blind end, maximizing reliability and performance in electrical wiring applications.

• Max voltage rating of thirty-five kiloVolts.
• 1/2 inch bolt size for easy installation.
• Specifications include 1-3/4 inch hole spacing.

Product Highlights

The product is designed to provide a secure and reliable electrical connection, suitable for a variety of applications in electrical systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 54864BE

Technical Specifications

• Material: Copper
• Voltage Rating: 35 kV
• Die Code: 50
• Wire Size: 3/0 AWG
• Stud Size: 1/2 inch
• Overall Length: 4.48 inches
• Barrel Diameter: 0.63 inches
• Tongue Size: 3 inches L x 0.94 inches W x 0.13 inches THK
