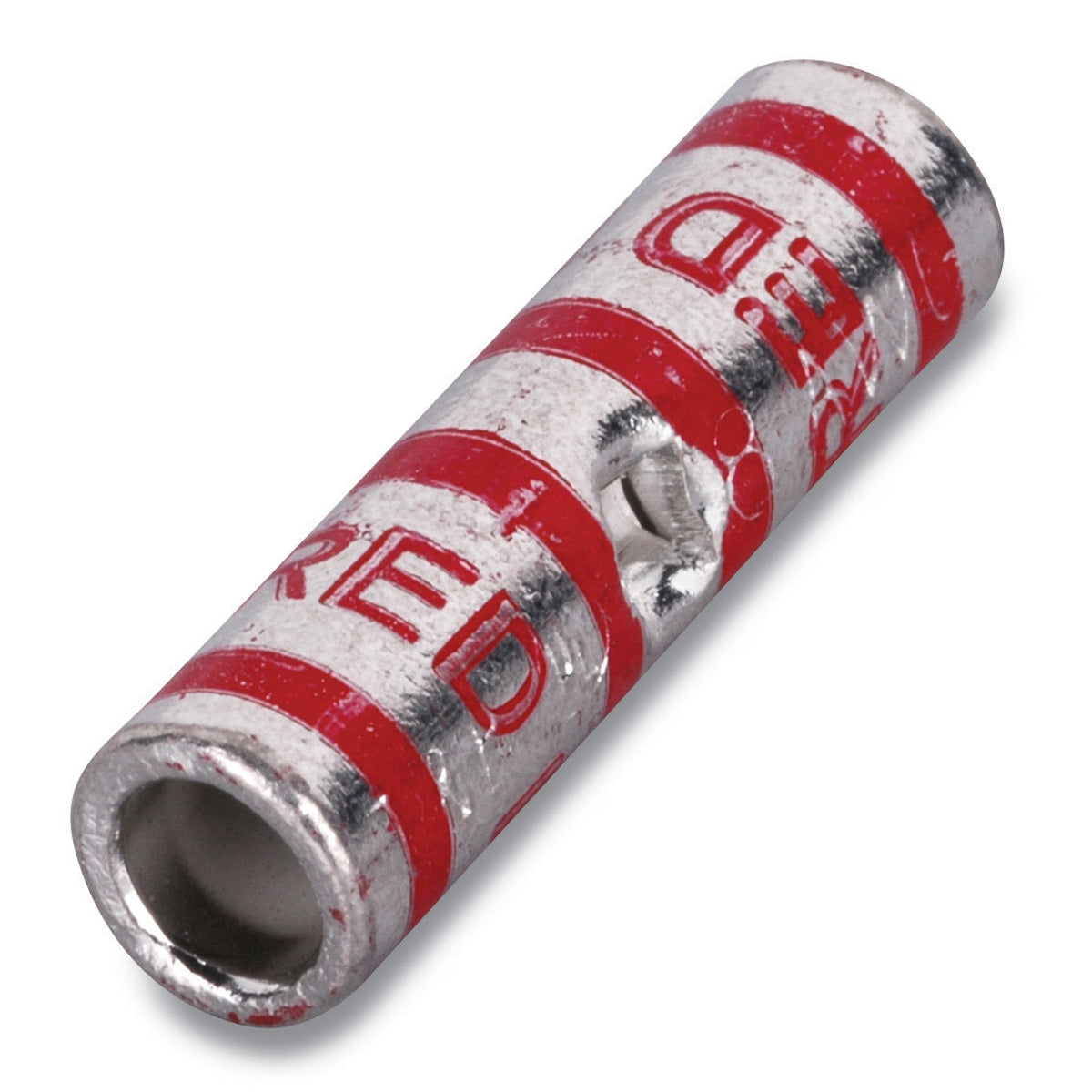

ABB 54504 T&B CU BUTT SPLICE #8STR RED

Product Description

The ABB 54504 T&B CU Butt Splice is a two-way standard barrel splice connector suitable for eight AWG copper conductors. It features a color-coded design that allows for easy matching with the correct installation tool. This product is built to withstand high voltage applications up to six hundred VAC.

• Color-coded for easy identification and proper installation
• Designed for high pullout values and low resistance connections
• Made with tin-plated copper for durability and reliability

Product Highlights

ABB's splice connectors utilize a color-keyed system for secure crimping and enhanced connection quality.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621054504

Technical Specifications

• Color Code: Red
• Conductor Size: 8 AWG
• Conductor Type: Copper
• Die Code: 21
• Length: 1 in
• Material: Copper
• Specifications: Tin Plated
• Standards/Approvals: CSA Certified, UL File No. E9809
• Voltage Rating: 600 VAC
