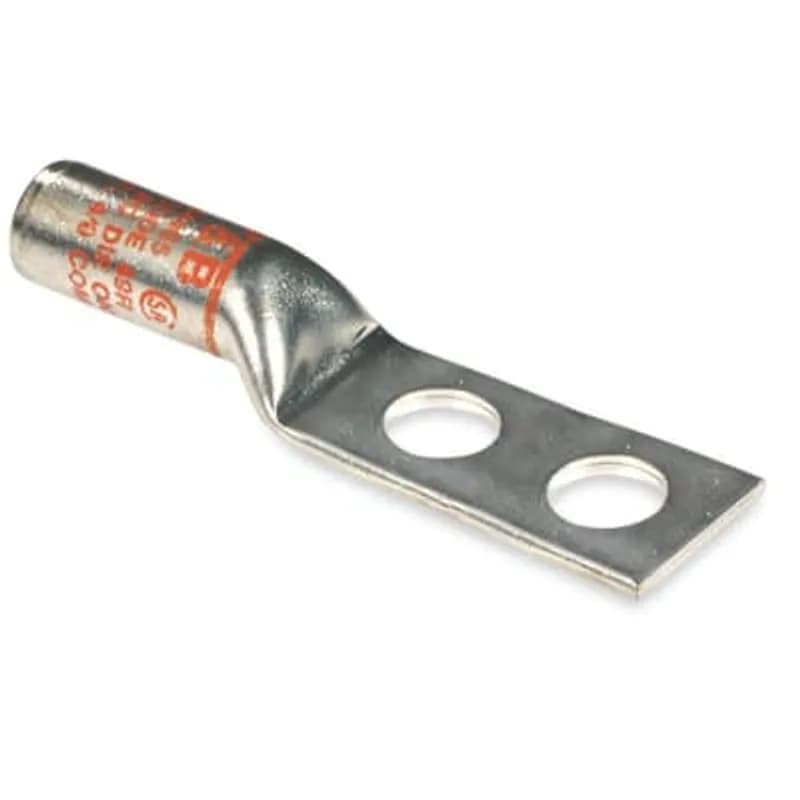

Abb 54479 Copper Two-Hole High Voltage Lug 4/0 AWG

Product Description

The ABB 54479 copper two-hole high voltage lug is engineered for robust electrical connections in high-voltage applications. Constructed from high-conductivity copper with tin plating for corrosion resistance and excellent conductivity. Designed with a long barrel to maximize crimp surface area, providing superior wire pull-out strength and performance.

• Recommended for up to 15KV applications, installed with standard T&B tools with special rounding dies.
• The rounding die overlapped compressions provide a smooth round surface.
• This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.

Product Highlights

High-conductivity copper lug with tin plating, long barrel design, and blind end for high-voltage applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 54479
• Country of Origin: MX - Mexico

Technical Specifications

• Category: Cable or wire lug
• Cable Size: 4/0 AWG
• Number Of Holes: 2
• Voltage Rating: 35 kV
• Insulation: None
• Material: Copper
• Brand Name: Color Keyed / Blackburn
• Standard: UL E9809
• Stud Size: 1/2 in
• RoHS: RoHS3 Compliant
• REACH: REACH 247 Compliant
• TSCA: TSCA Section 6(h) Compliant
• ETIM: EC001051 Tube cable lug for copper conductors
• Connecting angle: 180 (horizontal)
• Slender flange model: N
• Insulated: N
• With sight-hole: N
• Surface protection: Tinned
• Number of mounting holes: 2
• AWG size: Other
• Termination Type: Compression
• Connector Style: Compression
• Contact Material: Copper
• Compatible Wire Gauge (AWG): 4/0
• MPN: 54479
• Item Length: 4-5/8"
• Stud Hole Spacing: 1-3/4 in.
• Lug Wire Size: 4/0 AWG
• Color Family: Purple
• Mounting Type: Free Hanging (In-Line)
• Manufacturer: ABB Electrification (Thomas and Betts)
• Termination: Crimp
• Packaging: Bulk
• Wire Gauge: 4/0 AWG
• Part Status: Active
• Terminal Type: Standard
• Stud/Tab Size: 1/2 Stud
• Contact Finish: Tin
• Terminal Style: Two Stud Holes
• Connection Type: Two-Hole, Blind End
• Size: 4/0 AWG, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing
• Special Features: Recommended for up to 15KV applications, installed with standard T&B tools with special rounding dies
• Type: Long Barrel
