ABB 54165-TB Copper 1-Hole Lug 35 kV (3/0 AWG) Replacement MPN

Product Description

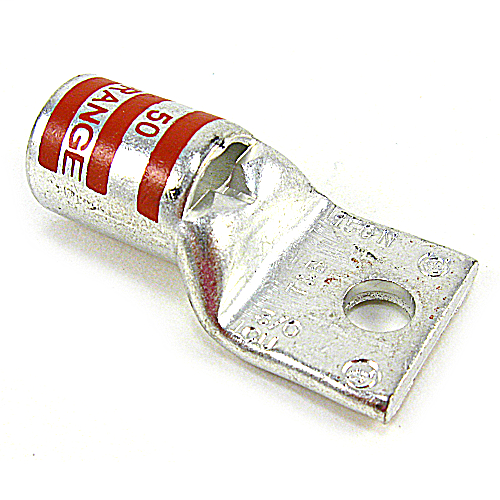

The ABB 54165-TB is a copper one-hole lug designed for reliable wire termination. This standard barrel lug features a peep hole for easier installation. It supports a wire size of three aught American Wire Gauge (3/0 AWG) and is rated for a maximum voltage of thirty-five kilovolts (35 kV). The 54165-TB uses a half-inch (1/2 inch) bolt size and has a tin-plated finish for improved conductivity.

• Designed for 3/0 AWG copper conductors
• Voltage rating of 35 kV
• Standard barrel type with a peep hole for easy installation

Product Highlights

This lug provides a secure connection for electrical wiring applications, ensuring high reliability and performance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Material: Copper
• Finish: Tin Plated
• Stud Size: 1/2 in
• Conductor Size: 3/0 AWG
• Mounting Hole Size: 0.531 in
• Overall Length: 2.35 in
• Barrel Diameter: 0.63 in
• Die Code: 50
• Standards/Approvals: CSA Certified, UL File No. E9809
