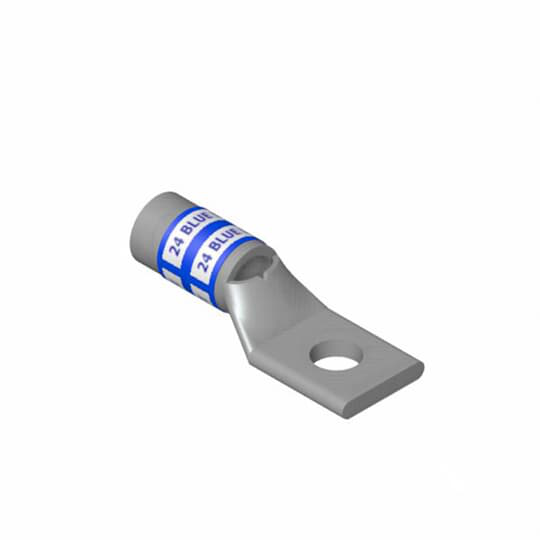

ABB 54145-TB Thomas & Betts Copper 1-Hole Lug 35kV 2 AWG

Product Description

The ABB 54145-TB is a copper one-hole lug designed for electrical connections. It is suitable for wire sizes of two AWG and has a half-inch bolt size. This standard barrel lug features a peep hole allowing for easy inspection. It is rated for a maximum voltage of thirty-five kilovolts. This product is tin plated for enhanced conductivity and durability.

• Application: Reliable electrical wiring connections
• Material: Copper with a tin plated finish
• Voltage: Supports up to 35 kV

Product Highlights

This copper lug is part of the Color-Keyed compression system, which helps ensure a proper crimp on conductors, enabling a high-quality connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 54145-TB
• Conductor Size: 2 AWG
• Stud Size: 1/2 in
• Barrel Size: 0.41 in Dia
• Overall Length: 1.92 in
• Tongue Size: 1.08 in L x 0.75 in W x 0.08 in THK
• Rated Voltage: 35 kV
• Standards/Approvals: CSA Certified | UL File No. E9809
