Product Description

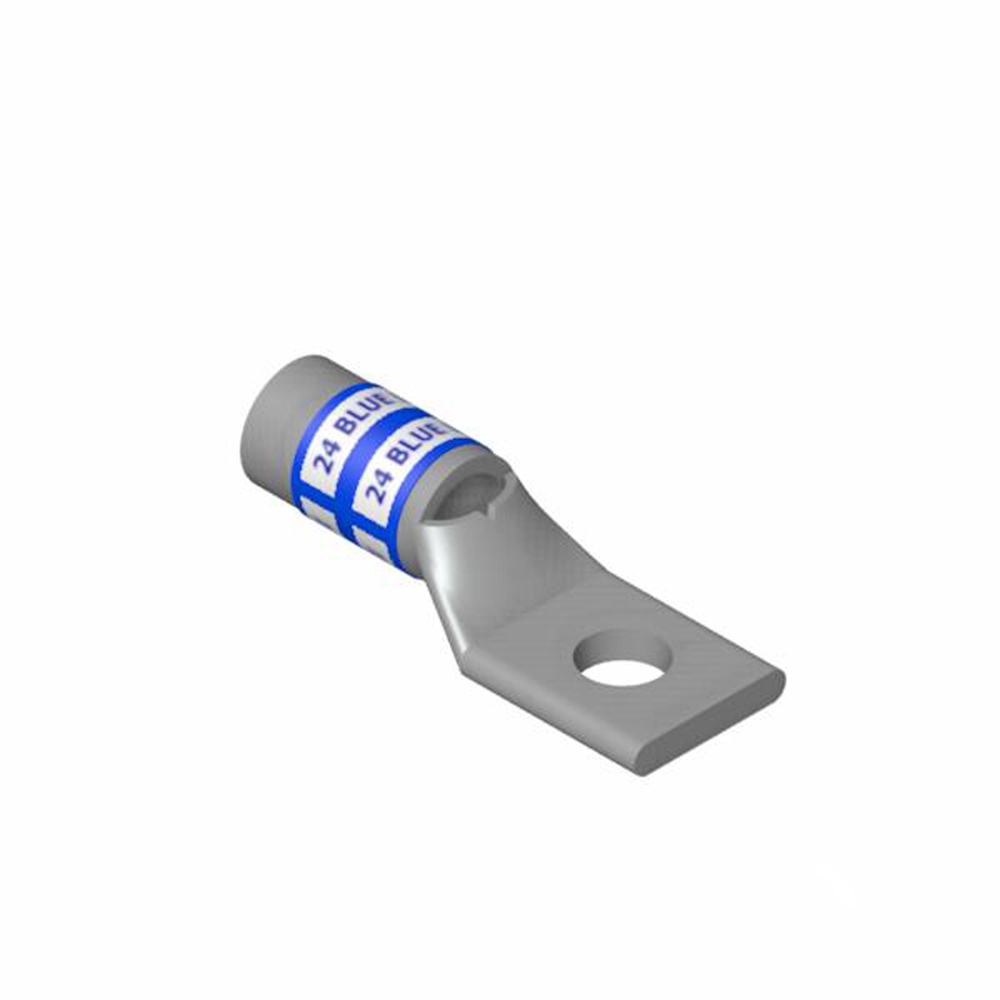

The ABB 54136 is a copper one-hole lug designed for electrical connections. The standard barrel design accommodates wire sizes of #6 AWG and features a peep hole for easy alignment. It has a maximum voltage rating of thirty-five kilovolts, making it suitable for high-voltage applications. The lug is tin plated, enhancing its conductivity and resistance to corrosion.
- Wire Size: #6 AWG
- Stud Size: 3/8 inch
- Voltage Rating: 35 kV
Product Highlights
This compression lug offers a reliable solution for securing copper conductors. It meets industry standards and provides excellent performance in electrical applications.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer: Thomas & Betts Co
Technical Specifications
-
Barrel Type: Standard, Straight
-
Material: Copper
-
Finish: Tin Plated
-
Application: Electrical wiring reliability
-
Barrel Size: 0.31 inches diameter
-
Overall Length: 1.41 inches
-
Tongue Size: 0.67 inches long x 0.6 inches wide x 0.07 inches thick
-
Mounting Hole Size: 0.406 inches
-
Series: 54100
-
Die Code: 24
-
Standards/Approvals: CSA Certified, UL File No. E9809
