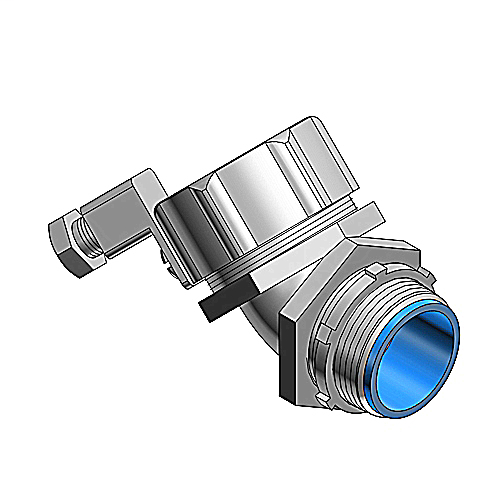

ABB 5346GR Thomas & Betts 1-1/2 Inch 45 Degree Insulated Liquidtight Ground Connector

Product Description

ABB 5346GR is a 1-1/2 inch 45 degree insulated liquidtight ground connector designed for use with liquid tight flexible metal conduits. This product is manufactured by Thomas & Betts Co and is ideal for applications that require positive bonding between conduit and enclosures.

• Used to positively bond conduit to box or enclosure.
• Constructed from malleable iron with chromate coating for durability.
• Designed for quick installation with low torque effort required.

Product Highlights

The ABB 5346GR connector is suitable for both indoor and outdoor applications where moisture is present. Its design allows for a reliable connection in demanding environments.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Trade Size: 1-1/2 inches
• Type: External Bonding Insulated
• Length: 4-9/16 inches
• Diameter: 2-23/32 inches
• Material: Malleable Iron
• Temperature Rating: -20 degrees C to 105 degrees C
• Thread Type: NPT
• Standards/Approvals: CSA Certified, UL File No. E3060
