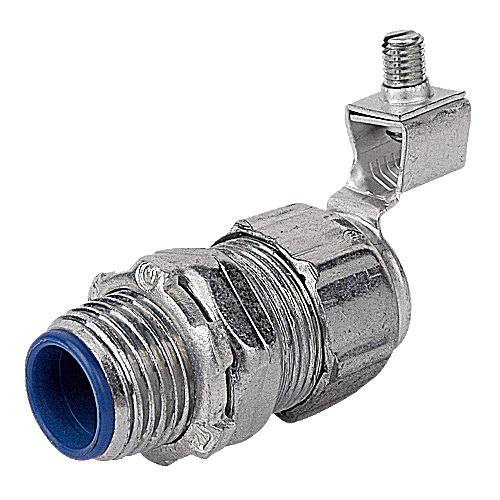

ABB 5333GR Thomas & Betts 3/4 Straight Liquidtight Connector

Product Description

The ABB 5333GR is a 3/4 inch steel external bonding liquidtight insulated connector designed for flexible metal conduit fittings. This straight connector features a revolver lug and is suitable for use in wet locations. It accepts grounding wire from American Wire Gauge number fourteen to number two.

• Designed for easy installation with low torque effort.
• Compatible with liquid tight flexible metal conduits.
• Includes a revolver lug and a tin plated copper alloy lug.

Product Highlights

This connector provides a reliable bond between conduits and boxes or enclosures, ensuring safety in various applications.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 5333GR

Technical Specifications

• Type: External bonding insulated straight
• Material: Steel
• Finish: Chromate coated/electro-zinc plated
• Trade Size: 3/4 inch
• Dimensions: 1-5/8 inches L x 1-21/32 inches W
• Application: For positively bonding conduit to box or enclosure in wet locations
• Standards/Approvals: CSA Certified, UL File No. E3060
• Includes: Revolver lug and tin plated copper alloy lug
