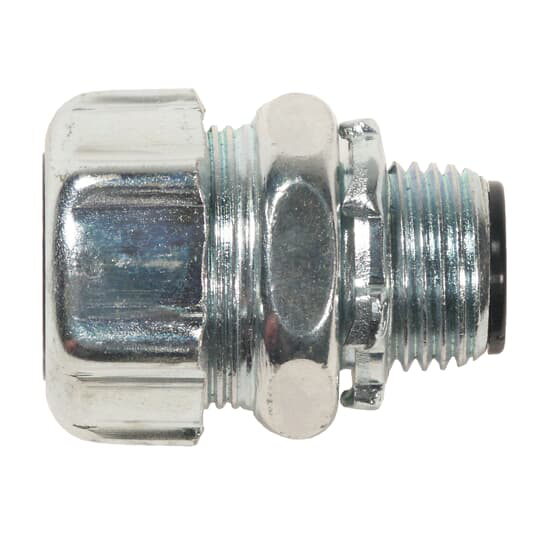

ABB 5333-HT Thomas & Betts 3/4 Straight Liquidtight Connector Insulated High Temperature

Product Description

The ABB 5333-HT is a 3/4 inch straight liquidtight connector designed for high temperature applications. This insulated connector is made of steel and features a clear chromate coating for corrosion resistance. It is suitable for use with liquidtight flexible metal conduits and operates effectively in demanding environments. The design includes a sure-tight gland that deflects moisture, ensuring a reliable seal.

• High temperature rated up to 150 degrees C
• Double beveled sealing ring with multiple sealing mechanisms
• Safe Edge ground cone for improved bonding and conductor protection

Product Highlights

This connector provides robust performance in various applications, including industrial, petrochemical, and food processing installations where moisture resistance and durability are critical.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 5333-HT

Technical Specifications

• Trade Size: 3/4 inch
• Material: Steel
• Finish: Zinc-Plated/Clear Chromate
• Dimensions: 1-5/8 inches long x 1-21/32 inches wide
• Temperature Rating: 150 degrees C
• Series: 53 Series
• Standards/Approvals: UL 514B
• Suitable For Use With: Liquid Tight Flexible Metal Conduits
