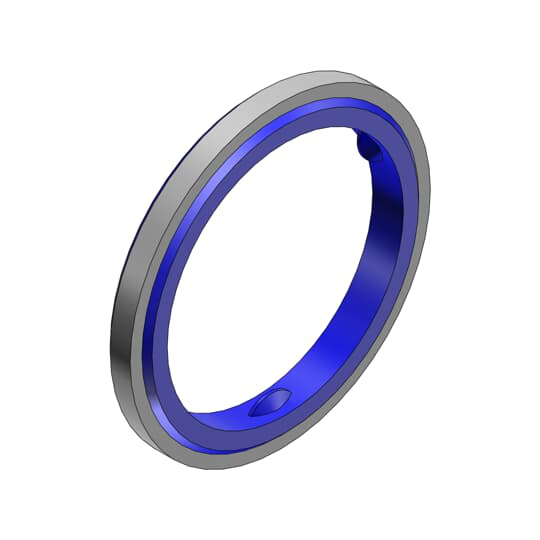

ABB 5268 Liquidtight Sealing Gasket - 2-1/2 Inch - Stainless Steel

Product Description

ABB 5268 is a liquidtight sealing gasket designed for use with liquid tight flexible metal conduits. This product features a stainless steel retainer and molded thermoplastic seals for reliable performance.

• Designed to fit liquid tight flexible metal conduits.
• Includes 316 stainless steel retainer ring.
• Provides a tight seal against oil, fumes, and moisture.

Product Highlights

The ABB 5268 liquidtight sealing gasket is essential for creating a secure connection in conduit applications, ensuring no leakage occurs.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 5268
• Type: Liquidtight Sealing Gasket
• Size: 2-1/2 inches
• Material: 316 Stainless Steel
• Thickness: 15/64 inches
• Outside Diameter: 3-7/16 inches
• Application: For use with externally threaded connectors providing a tight seal against oil, fumes, or moisture at the knockout opening.
• Standards/Approvals: CSA Certified, UL File No. E13938
