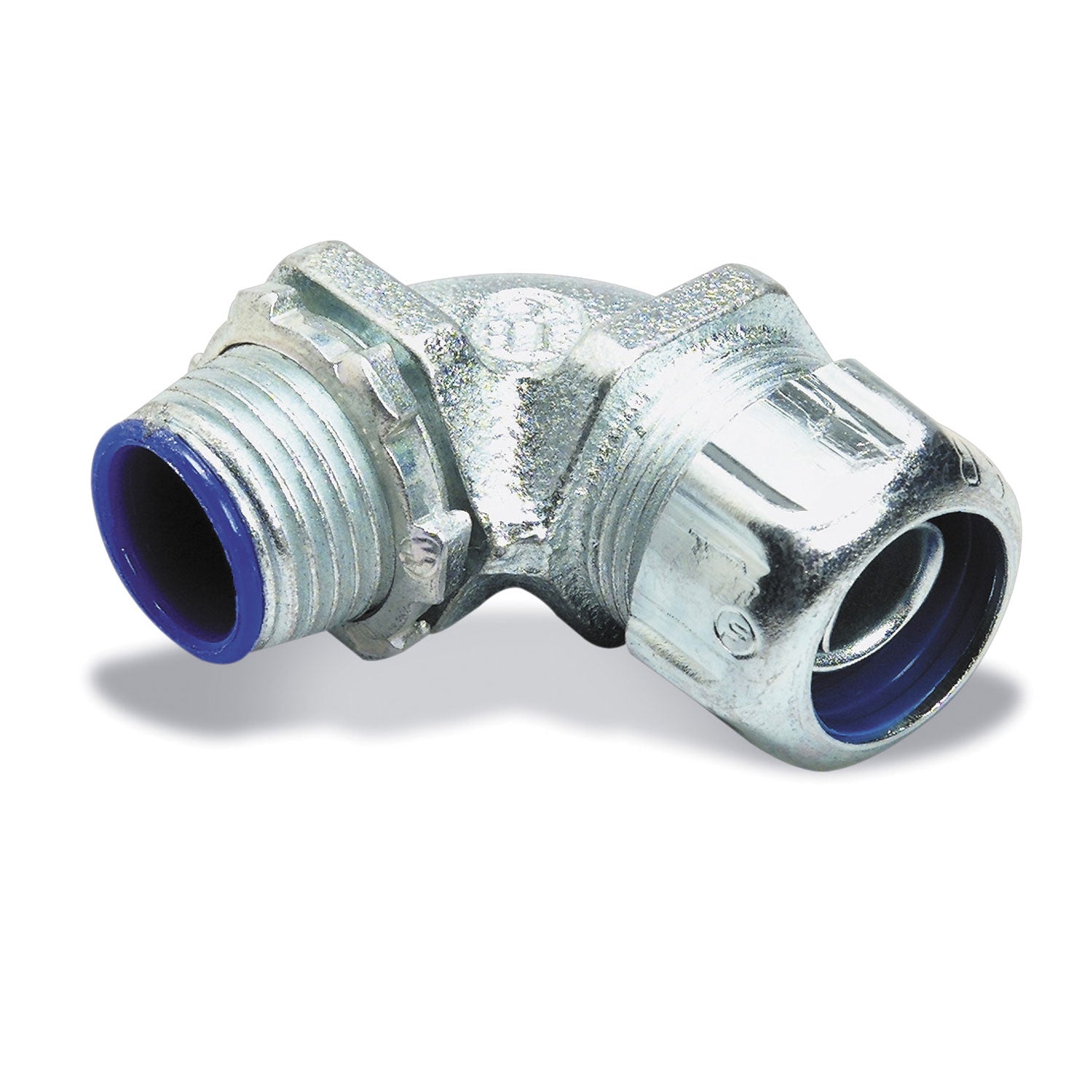

ABB 5252 T&B 90D LIQ-TITE CONN .XXV..

Product Description

The ABB 5252 is a T&B conduit connector, non-insulated and designed for use with liquid tight flexible metal conduits.

• 90-degree angle for flexible installations.
• Made of malleable iron with chromate coating for durability.
• Dimensions: one and nine-sixteenths inches long by one and three-eighths inches wide.

Product Highlights

The 5252 connector is suitable for outdoor and indoor applications where flexible metal raceways are exposed to moisture. Its design enables easy installation with low torque.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621005252

Technical Specifications

• Type: Non-Insulated
• Trade Size: 1/2 in
• Angle: 90 deg
• Dimensions: 1-9/16 in L x 1-3/8 in W
• Material: Malleable Iron
• Finish: Chromate Coated/Electro-Zinc Plated
• Standards/Approvals: CSA Certified, UL File No. E23018
• Suitable For Use With: Liquid Tight Flexible Metal Conduits
• Application: For use where flexible metal raceway is installed in outdoor or indoor locations exposed to continuous or intermittent moisture
