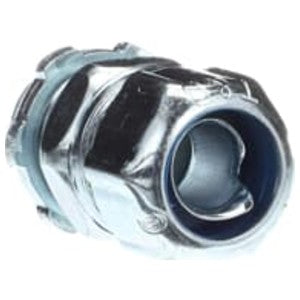

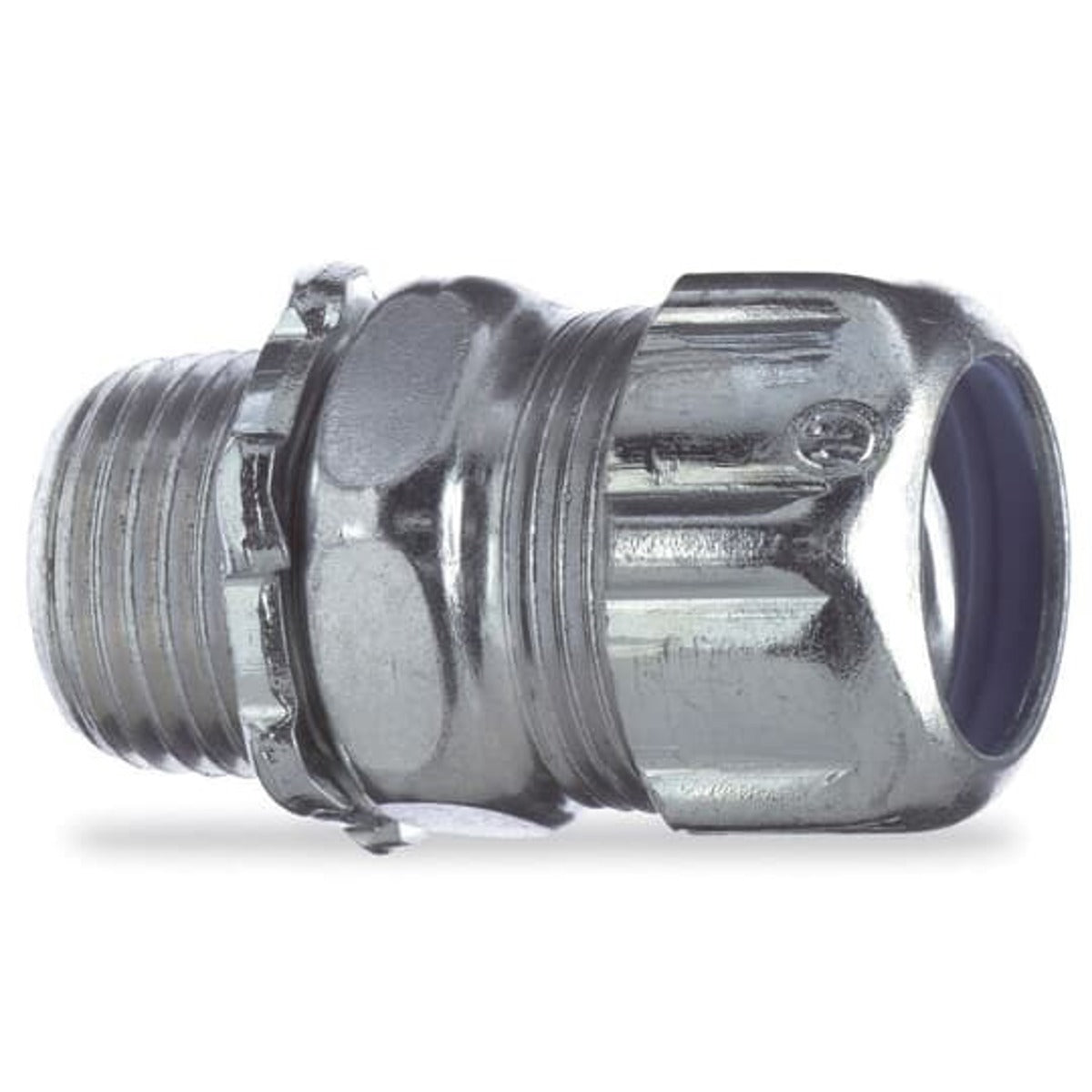

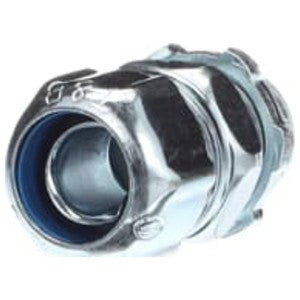

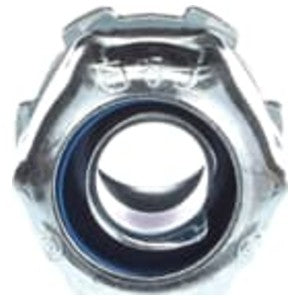

Abb 5231 liquidtight conduit fitting straight 3/8 inch

Product Description

The ABB 5231 is a straight, non-insulated liquidtight conduit fitting constructed from steel, designed for 3/8 inch flexible metallic conduit. This 5200 Series connector is suitable for both indoor and outdoor applications, including locations exposed to continuous or intermittent moisture. It features a metallic electro zinc/chromate finish and provides robust environmental protection with IP66, IP67, IP68, IP69, and multiple NEMA ratings.

• Liquidtight design ensures protection against moisture.
• Straight configuration for direct conduit connections.
• Constructed from durable steel for longevity.

Product Highlights

Durable steel construction with high environmental protection for flexible metallic conduit.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 5231
• Country of Origin: United States

Technical Specifications

• Type: Conduit Fitting
• Connection Type: Straight
• Material: Steel
• Size: 3/8 Inch
• Insulation: Non-Insulated
• Accepted Cable Diameter: 0.375 in
• Bushing Material: Rubber
• Family Name: T&B Liquidtight Fittings
• Series: 5200 Series
• Thread Size: NPT 3/8 in
• External Length: 1.50 inches
• IP / NEMA Rating: IP66, IP67, IP68, IP69, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
• RoHS Compliant: Yes
• RoHS Phthalates Compliant: Yes
• Product Category: Liquidtight Flexible Cond
• Finish: Zinc Plated Steel
• Use With: Flexible Metallic Liquidtight Conduit
• Dimension A: 1.15625 inches
• Dimension B: 1.08333 inches
• Dimension C: 0.5625 inches
• UL Certified: E-23018
• Approval: UL, CSA, CE
• Application: Indoor/Outdoor, Hazardous Location
• Enclosure Type: Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2
• Applicable Standard: IEC/EN 61386-1, NEMA FB-1, NFPA 70, Federal Specification A-A-50552
