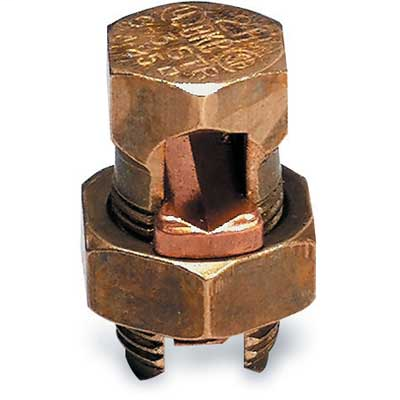

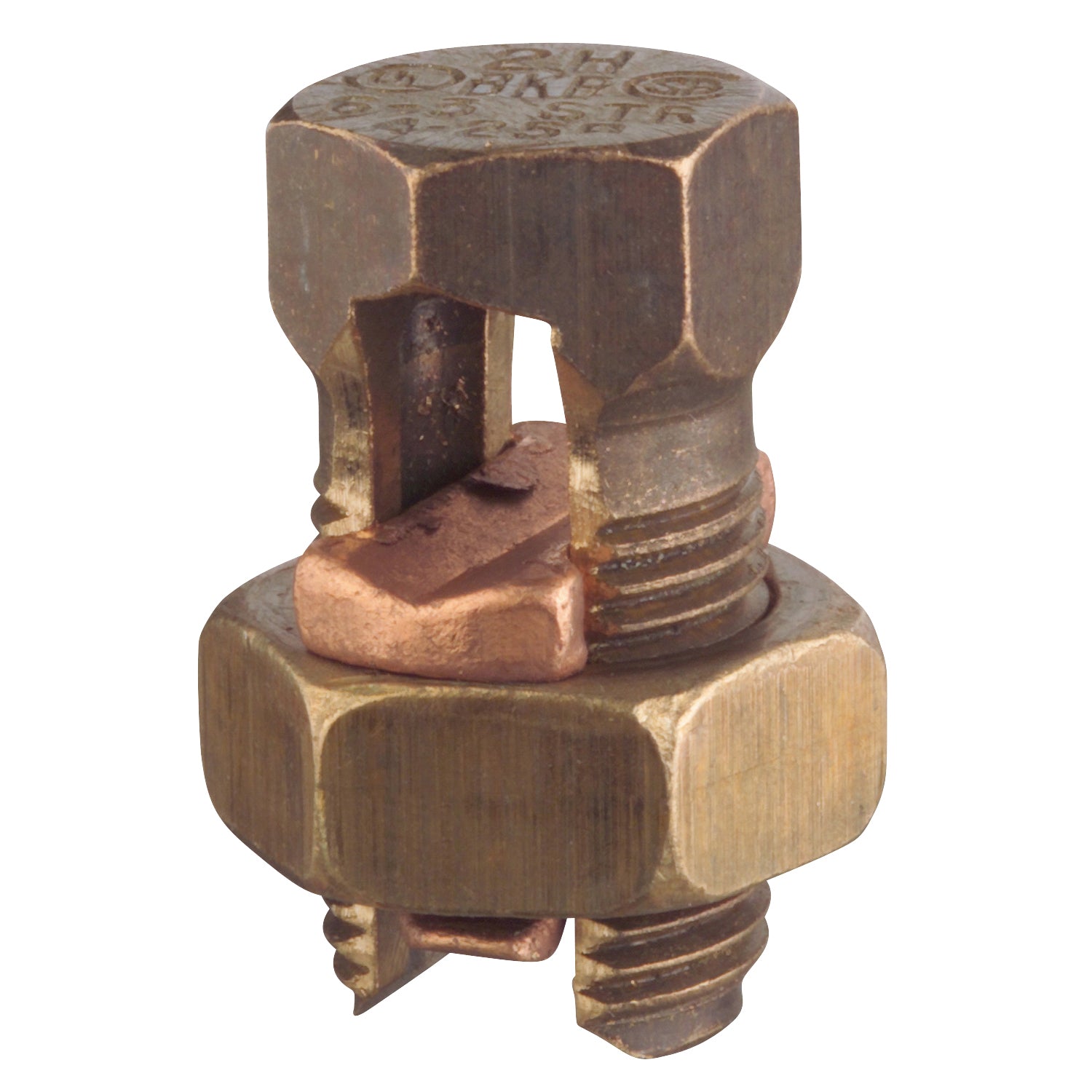

ABB 4H Blackburn 4H Copper Split Bolt Connector Power (4 Sol - 8 Sol)

Product Description

The ABB 4H Blackburn Copper Split Bolt Connector is designed for splicing, tapping, or terminating conductors in power and grounding electrical connections. This connector has a conductor range of 4 to 8 AWG solid copper, which makes it suitable for various applications in the electrical field.

• High strength bronze alloy construction
• UL recognized for solid and stranded configurations
• Hex design bolts for secure connections

Product Highlights

This connector features a split design for optimal performance in electrical connections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• MPN: 4H
• Material: Bronze Alloy
• Finish: Metallic
• Application: For splicing, tapping or terminating conductors in power and grounding electrical connection
• Conductor Size: 8 to 4 AWG
• Bolt Size: 17/32 x 1-1/16 in
• Standards/Approvals: UL File No. E9809 | CSA Certified
