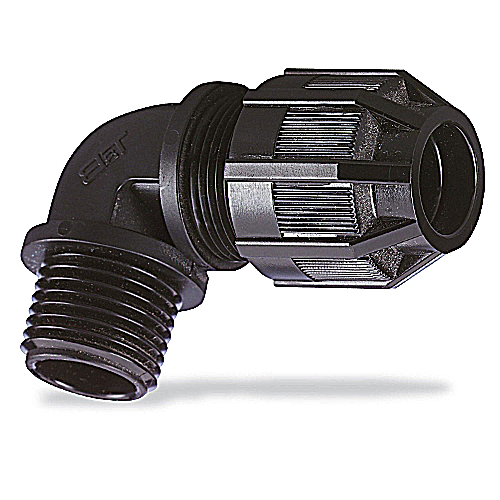

ABB 4972NM Thomas & Betts 3/4 Inch 90 Degree Strain Relief Connector

Product Description

ABB 4972NM is a liquidtight strain relief connector designed for cable management in various applications. It features a 90-degree bend and is compatible with cables in the range of half an inch to three-quarters of an inch. The connector is made from UV-resistant polyamide material, ensuring longevity in various environments.

• IP65 rated for water resistance.
• Works with different cable types, including S, SO, and SJ.
• Ideal for ordinary, wet, or dry locations.

Product Highlights

This connector is suitable for passing cord cables into enclosures through bulkheads, minimizing the risk of cable damage while maximizing efficiency.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 4972NM
• Trade Size: 3/4 Inch
• IP Rating: IP65
• Temperature Rating: -34 to 105 degrees C
• Material: Nylon 6.6/Polyamide
• Connection Type: NPT
• Cable Openings: 1/2 to 3/4 in
• Applications: For passing a cord cable into an enclosure through a bulkhead
