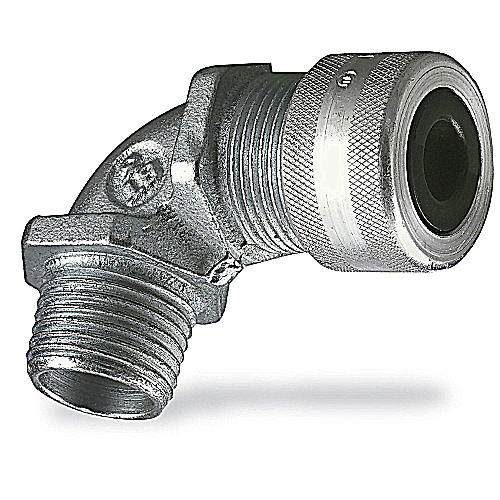

ABB 4972AL Thomas & Betts 3/4 Inch 90 Degree Aluminum Ranger Cord Connector

Product Description

The ABB 4972AL is a liquidtight strain relief connector designed to safely pass cord cables into enclosures through bulkheads. It features a three-quarter inch trade size and accommodates cable openings from half inch to three-quarters inch. This product is made of aluminum and includes a gland nut and grip for enhanced performance.

• Suitable for ordinary, wet, or dry locations.
• Reduces inventory with an extended range for strain relief.
• Designed for use in hazardous locations per NEC guidelines.

Product Highlights

The ABB 4972AL cord connector offers superior strain relief in a compact design, allowing for installation in tight spaces.

Product Information

Standard Information

• Manufacturer: Thomas & Betts Co
• Product ID: 440214

Technical Specifications

• Cable Type: S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD
• Trade Size: 3/4 Inch
• Temperature Rating: -20 to 105 degrees Celsius
• Connection Type: Thread
• Material: Aluminum
• Application: For passing a cord cable into an enclosure through a bulkhead
• Standards/Approvals: ANSI C33.84, ANSI NFPA 70-1978, CSA C22.2 File No. 18, UL 514 File No. E13938
• Box Quantity: 50
