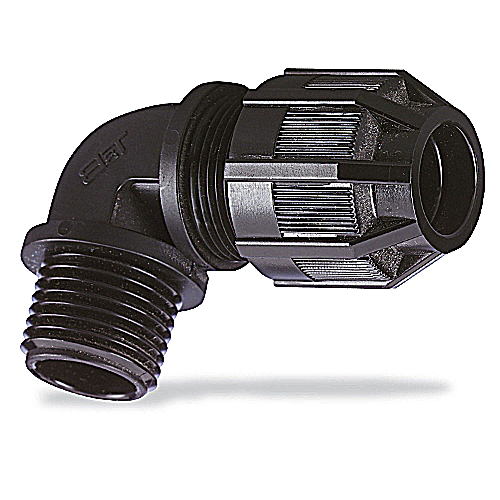

ABB 4970NM Thomas & Betts 3/4 Inch 90 Degree Strain Relief Connector

Product Description

The ABB 4970NM is a 3/4 inch strain relief connector designed for liquid-tight applications. It allows for secure cable entry into an enclosure while accommodating cable ranges from one-eighth inch to three-eighths inch. This connector is suitable for use in ordinary, wet, or dry locations.

• IP65 rated for water and dust resistance.
• Constructed from UV resistant polyamide.
• Operates effectively between -34 to 105 degrees Celsius.

Product Highlights

The ABB 4970NM is engineered to provide superior strain relief in a compact design. Ideal for tight spaces, it meets the demands of multiple cable types.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 4970NM

Technical Specifications

• Trade Size: 3/4 Inch
• IP Rating: IP65
• Material: Nylon 6.6/Polyamide
• Temperature Rating: -34 to 105 degrees C
• Connection Type: NPT
• Cable Openings: 1/8 to 3/8 Inch
• Standards/Approvals: Coast Guard CG293|CSA 52391|UL File No. E13938
• Applications: Suitable for passing a cord cable into an enclosure through a bulkhead in various environments.
