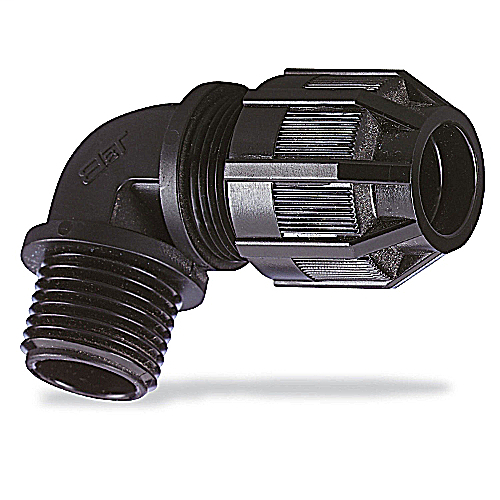

ABB 4961NM Thomas & Betts 1/2 Inch 90 Degree Strain Relief Connector

Product Description

The ABB 4961NM is a 1/2 inch liquidtight strain relief connector designed for a variety of electrical applications. This connector features a 90-degree bend and is constructed from durable nylon 6.6, suitable for cable openings ranging from 0.31 inches to 0.56 inches. With an IP65 rating, it provides protection against dust and water ingress, making it ideal for use in wet or dry environments.

• For cable sizes ranging from 0.31 inches to 0.56 inches.
• Suitable for installation in ordinary, wet, or dry locations.
• IP65 rated for protection against dust and water.

Product Highlights

This connector allows for superior strain relief and is designed for passing cable into enclosures through a bulkhead, ensuring secure connections.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 4961NM

Technical Specifications

• Application: Provide a means for passing a cord cable into an enclosure through a bulkhead.
• Cable Openings: 0.31 to 0.56 inches.
• Cable Type: S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD.
• Color: Black.
• Connection Type: NPT.
• Material: Nylon 6.6/Polyamide.
• Temperature Rating: -34 to 105 degrees C.
• Trade Size: 1/2 Inch.
