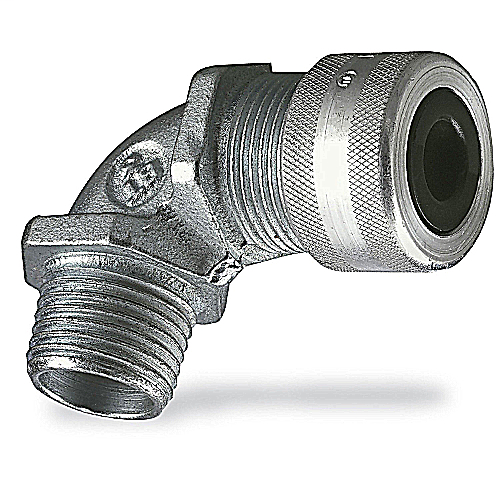

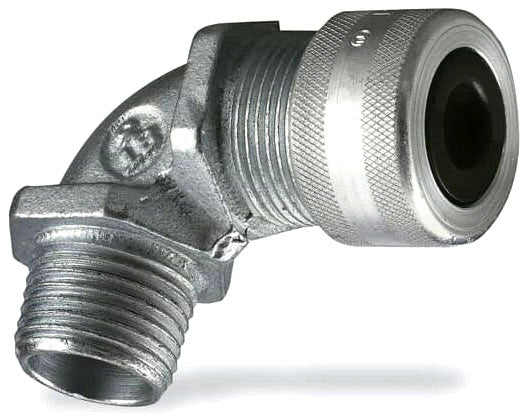

ABB 4961AL Thomas & Betts 1/2 Inch 90 Degree Aluminum Ranger Cord Connector

Product Description

The ABB 4961AL is a liquidtight strain relief connector designed for cable openings ranging from 0.31 inches to 0.56 inches. This product features a 90-degree bend for improved cord management. It is made from aluminum, offering strength and durability required in various applications. Suitable for ordinary, wet, or dry locations, this connector meets NEC standards for use in hazardous locations.

• Liquidtight design prevents moisture ingress.
• Compatible with S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable types.
• Temperature range from -20 degrees Celsius to 105 degrees Celsius.

Product Highlights

This connector is versatile, functioning effectively in tight spaces while providing reliable strain relief for cables.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Trade Size: 1/2 inch
• Connection Type: Thread
• Material: Aluminum
• Temperature Rating: -20 to 105 degrees Celsius
• Cable Openings: 0.31 to 0.56 inches
• Standards/Approvals: ANSI C33.84, ANSI NFPA 70-1978, CSA C22.2 File No. 18, UL 514 File No. E13938
• Box Quantity: 50
