Product Description

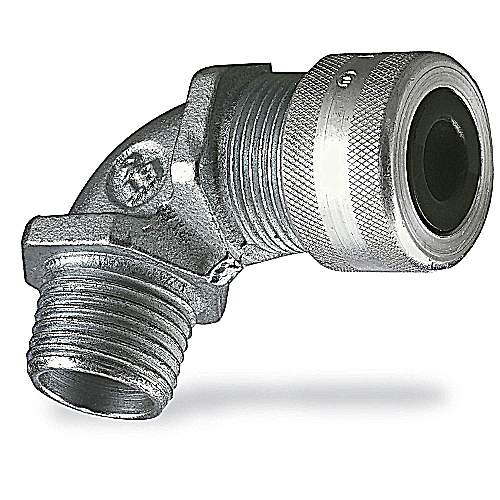

The ABB 4960AL is a liquidtight strain relief connector designed for use in various applications. This connector features a 90-degree bend and accommodates cord ranges from one eighth to three eighths of an inch. It includes a rubber bushing and an aluminum body for durability and performance.
- Extended range with superior strain relief.
- Suitable for ordinary, wet, or dry locations.
- Compatible with various cable types including S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD.
Product Highlights
This connector is ideal for providing a means of passing a cord cable into an enclosure through a bulkhead. It is designed to restrict cable bending with a gland nut that forms a mechanical grip and ensures a tight seal against water and oil.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: 4960AL
Technical Specifications
-
Application: For passing a cord cable into an enclosure through a bulkhead and ordinary, wet, or dry locations.
-
Cable Openings: One eighth to three eighths inch.
-
Cable Type: S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD.
-
Material: Aluminum.
-
Temperature Rating: Minus twenty to one hundred five degrees Celsius.
-
Trade Size: One half inch.
-
Connection Type: Thread.
-
Standards/Approvals: ANSI C33.84, ANSI NFPA 70-1978, CSA C22.2 File No. 18, CSA File No. LR589/LR4484/52391, UL 514 File No. E13938.
