ABB 40H Blackburn 40H Split Bolt Connector Power (1) Replacement MPN

Product Description

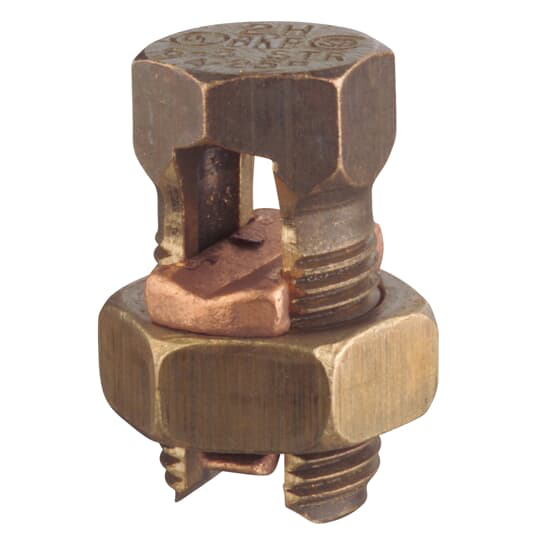

The ABB 40H Blackburn 40H Split Bolt Connector is a Type H high strength connector. It is designed for use with solid and stranded copper conductors ranging from one AWG to 250 kcmil. This connector features a bolt that measures one inch by two and five-sixteenths inches, making it suitable for various electrical applications.

• Conductor range covers from 1 AWG to 250 kcmil.
• Suitable for splicing, tapping, or terminating conductors.
• Manufactured from high-strength bronze alloy for durability.

Product Highlights

The Blackburn 40H Split Bolt Connector is widely used in power and grounding electrical connections. Its robust design ensures secure connections under various conditions.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Blackburn / Thomas & Betts

Technical Specifications

• Application: Splicing, tapping or terminating conductors in power and grounding electrical connection
• Bolt Size: 1 x 2-5/32 inches
• Color: Metallic
• Conductor Size: 1 AWG to 250 kcmil
• Conductor Type: Solid/Stranded Copper
• Material: Bronze Alloy
• Specifications: 0.58 inches Split, 1-5/16 inches Hex Nut
• Standards/Approvals: UL File No. E9809, CSA Certified
• Type: Type H High Strength
