Abb 3axd50000010763 Remote Door Mount Panel Kit

Product Description

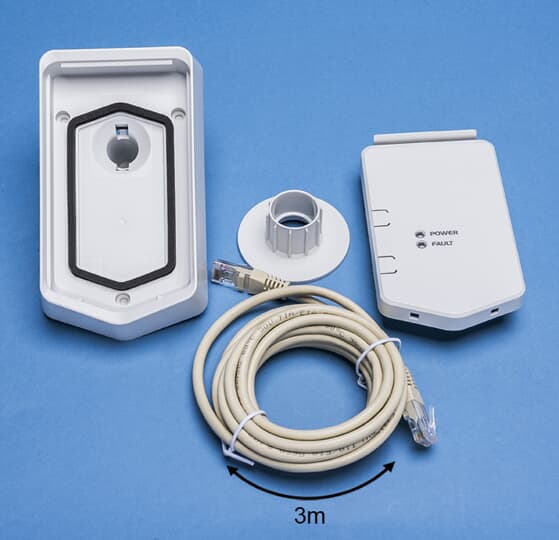

The ABB 3axd50000010763 is a door mounting kit designed for remote panel installation on compatible ABB variable frequency drives. The kit contains both door panel mount (DPM) components needed to relocate the control panel from the drive enclosure to a cabinet door or remote surface. This hardware accessory is installed by licensed electricians and drive system integrators during initial commissioning or panel relocation projects. At 0.489 pounds, the kit is a lightweight but essential mechanical component for panel flexibility in drive installations.

This mounting kit is used in industrial and commercial VFD installations where the operator control panel must be accessible from a cabinet door or remote mounting surface rather than directly on the drive unit. It is equivalent to the DPMP-EXT remote mount kit and is applicable to ACS580 and ACS880 series drive installations. Typical applications include motor control centers, enclosed drive cabinets, and process automation panels where ergonomic panel placement is required.

Key Features

• Contains both DPM components required for a complete door panel mount installation
• Equivalent to DPMP-EXT remote mount kit
• Compatible with ACS580 and ACS880 series drives
• Lightweight construction at 0.489 pounds for easy handling during installation
• Allows control panel relocation from drive body to cabinet door or remote surface

Compatibility

Compatible with ABB ACS580 and ACS880 series variable frequency drives. Equivalent to DPMP-EXT remote mount kit as noted in product data.

Installation Notes

Installation should be performed by a qualified electrician or certified drive systems integrator. Power down and de-energize the VFD fully before beginning any mechanical or electrical work on the drive enclosure. Follow all applicable NEC requirements and the drive manufacturer service documentation for panel mounting procedures. Verify that all connectors and fasteners are fully seated before restoring power to the drive.

Technical Specifications

• Net Weight: 0.489 pounds
• Kit Contents: Both DPM door panel mount components
• Equivalent Part: DPMP-EXT

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3axd50000010763
