Abb 3AXD50000004418 CMOD-02 external 24 V isolated PTC interface (piece)

Product Description

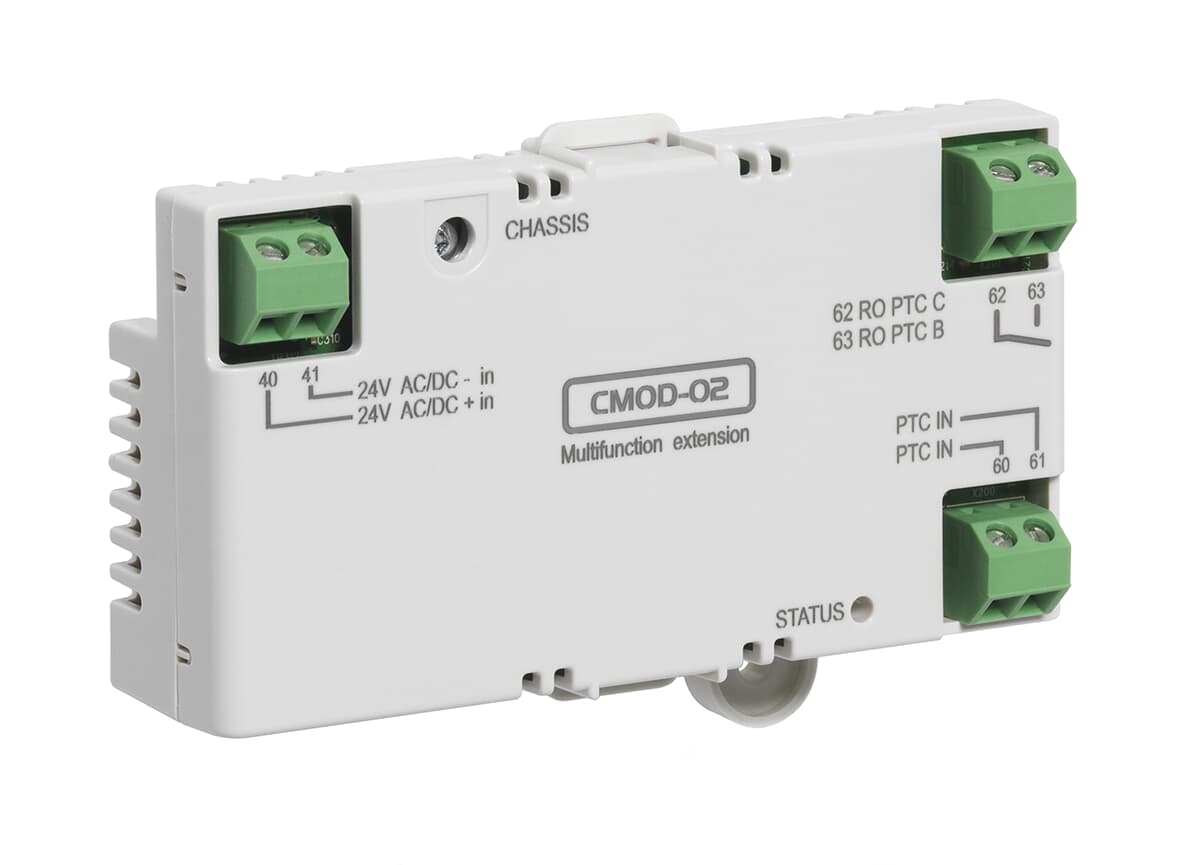

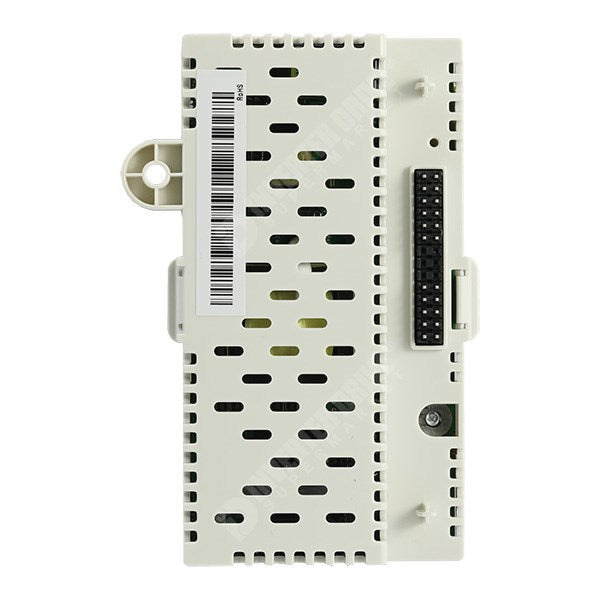

ABB 3AXD50000004418 is the CMOD-02 external 24 V isolated PTC interface module. It provides an isolated input for PTC thermistors and accepts an external 24 V AC or DC supply, serving as an I/O option for drives to monitor motor thermistors and protect equipment. The module supports maintaining keypad and control electronics power with an external +24 V supply and is compatible with ACS580 and ACH580 inverters.

• Isolated PTC interface for connection of motor thermistors
• Supports external 24 V AC/DC supply and can maintain keypad/control power with external +24 V
• Designed as an I/O expansion module for drives; compatible with ACS580 and ACH580 inverters

Product Highlights

Isolated PTC input; external 24 V AC/DC supply support; compatible with ACS580 and ACH580 inverters

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3AXD50000004418
• Country of Origin: Finland, China

Technical Specifications

• Brand: ABB
• MPN: 3AXD50000004418
• Model: CMOD-02
• Function: External 24 V isolated PTC interface
• Supply Voltage: External 24 V AC/DC
• Interface Type: Isolated PTC input
• External Supply Function: Maintains keypad and control electronics power when main supply is disconnected
• Compatibility: ACS580 and ACH580 inverters
• Product Type: I/O expansion module for drives
• Order Code: 28813
• Dimensions: 1.57 x 5.20 x 4.49 inches
• Weight: 0.22 lb
• GTIN (EAN): 6438177310174
• Country of Origin: Finland; China
