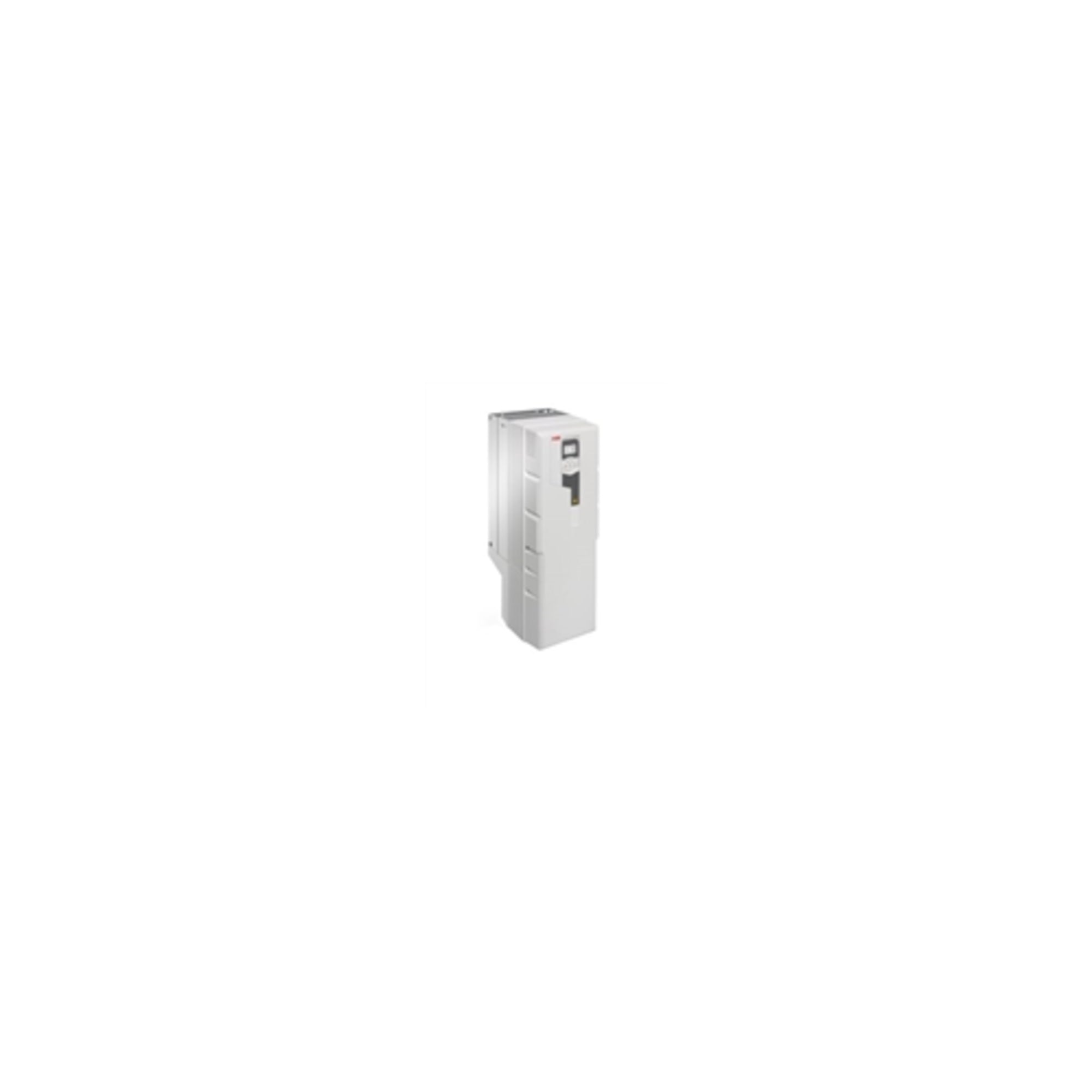

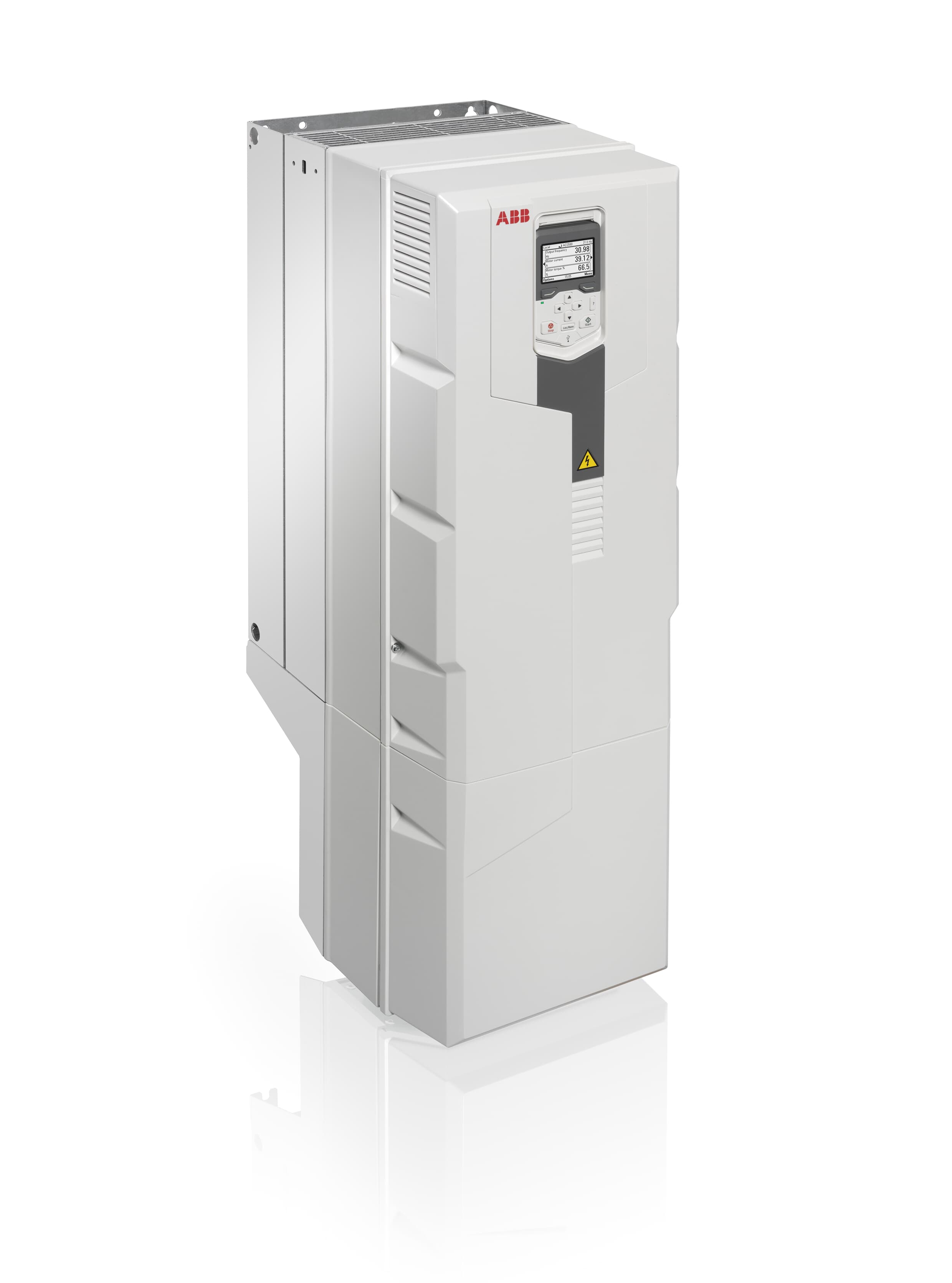

Abb 3AUA0000204822 ACS580-01-180A-4 150 HP (Frame R7)

Product Description

Abb 3AUA0000204822 is a wall-mounted low-voltage general-purpose AC drive (model ACS580-01-180A-4) rated for 150 HP and designed for 3-phase motor control. It supports V/Hz and sensorless vector control, features coated control boards and motor temperature monitoring, and is available in enclosure classes IP21, IP55 and IP66. The drive accepts a 380–500 V input range with a 180 A rated current and suits compressors, conveyors, pumps, mixers and fans.

• Rated 150 HP, 180 A, 3-phase input; input voltage range 380–500 V (nominal 480 VAC)
• Supports V/Hz and sensorless vector control; compatible with induction, permanent magnet, synchronous reluctance and optimum pole motors
• Wall-mounted enclosures IP21/IP55/IP66 with coated control boards and motor temperature monitoring; frame R7

Product Highlights

150 HP / 180 A wall-mounted ACS580 drive; V/Hz and sensorless vector control; multiple enclosure ratings (IP21, IP55, IP66)

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3AUA0000204822
• Country of Origin: Finland

Technical Specifications

• Brand: ABB
• Manufacturer Part Number: 3AUA0000204822
• Model: ACS580-01-180A-4
• Series: ACS580
• Type: Low voltage AC general-purpose wall-mounted drive
• Input Voltage: 380-500 V (nominal 480 VAC)
• Rated Voltage: 480 VAC
• Rated Current: 180 A
• Horsepower: 150 HP
• Phases: 3-phase
• Frequency: 50/60 Hz
• Frame Size: R7
• Mounting Type: Wall-mounted
• Enclosure Rating: IP21 (UL Type 1); optional IP55 (Type 12) and IP66 (Type 4X)
• Control Methods: V/Hz and sensorless vector control
• Supported Motor Types: Induction, permanent magnet, synchronous reluctance, optimum pole motors
• Control Panel: Assistant standard (multi-language); optional Bluetooth control panel
• Motor Protection: Motor temperature monitoring
• Control Board: Coated control boards
• Overload Capability: 1.1 overload capability; short-duration overload ratings (e.g., 10% and 50% depending on mode)
• Safety Functions: Safe Torque Off (STO) — safety function provided; check product datasheet for certified SIL/PL ratings
• Dimensions (HxWxD): 34.67 x 11.18 x 14.58 in
• Weight: 120 lb
• Operating Temperature (Max): 40 C
• Typical Applications: Compressors, conveyors, pumps, extruders, centrifuges, mixers, fans
