Abb 3AUA0000204811 ACS580-01-014A-4 10HP 14A 3-PH 480VAC R2 3AUA0

Product Description

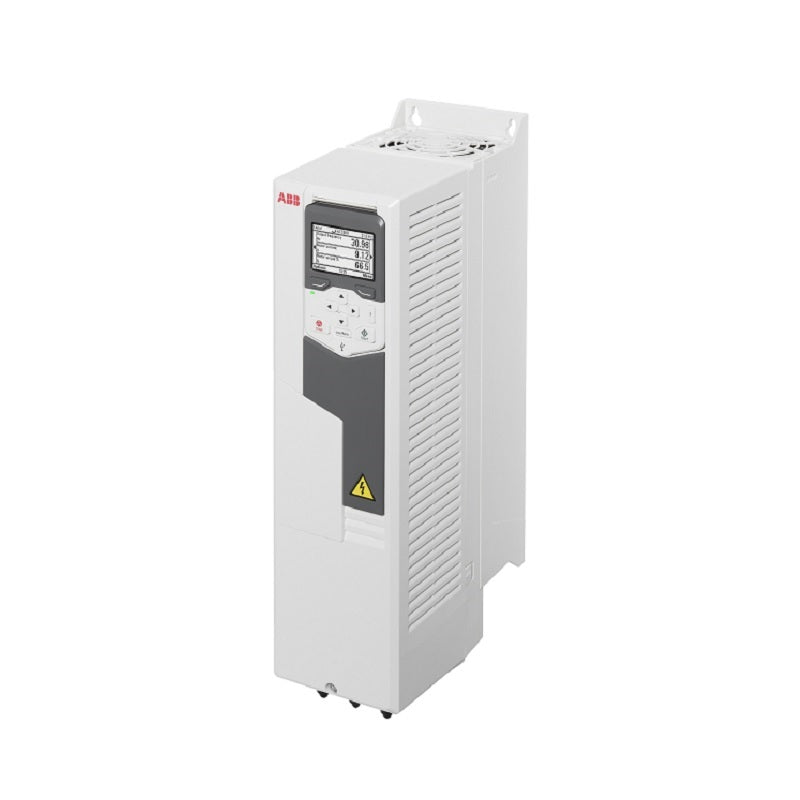

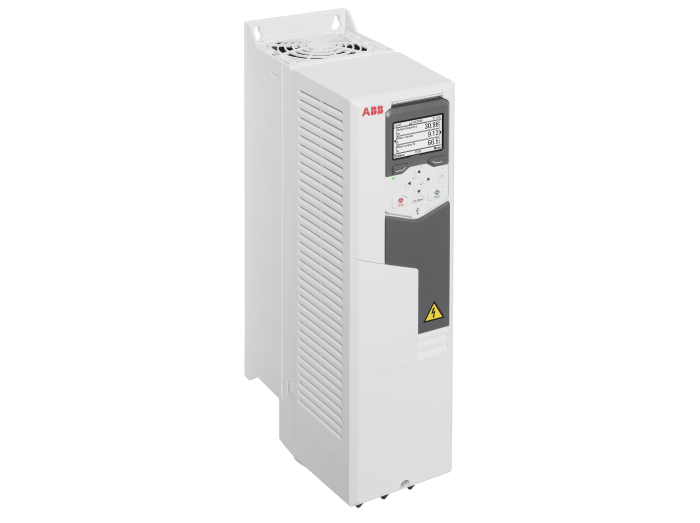

The ABB 3AUA0000204811 ACS580-01-014A-4 is a 10HP, 14A, 3-PH 480V AC drive, also described as a 10HP AC DRIVE. Designed for pumps, fans, compressors, conveyors, and mixers. It features embedded adaptive programming for easy integration into automated systems and can function in AC induction and PM motors. Includes STO, Sensorless Vector Control and Adaptive Programming.

• Built for Harsh Conditions
• Intuitive User Interface
• Sensorless Vector Control

Product Highlights

Compact AC drive for diverse applications. Features adaptive programming and sensorless vector control for AC induction and PM motors.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3AUA0000204811

Technical Specifications

• Manufacture: ABB DRIVES
• Mfr Catalog Number: 3AUA0000204811
• Model / ID Number: ACS580-01-014A-4
• Size: R2
• Rating NEMA/IEC: NEMA 1
• Enclosure: IP21
• Frame: R2
• Mounting: WALL MOUNTED
• Manufacturer: ABB
• Product Series: ACS580
• Family Series: ABB Drives, ACS580 Series
• Description: ACS580 AC Drive, 3-380-480V In, 10HP, 14A, Type 1, 1.1 overload, Assistant Standard, HxWxD 18.62x4.84x9.02 in, Wall
• Phase: 3
• HP (Variable Torque Rating): 10 hp
• Amps (Variable Torque Rating): 14 A
• Brake: Dynamic Braking, Flux Braking
• Closed Loop: No
• AC Line Regenerative: No
• Operator Controls: Keypad Included
• Motor Control-Max Level: Open Loop Vector (Sensorless Vector)
• Nominal Input Voltage: 380 VAC, 415 VAC, 480 VAC
• AC Voltage: 380-500 VAC
• Dynamic Braking: Included
• Protection Rating: IP21
• Height: 18.6 "
• Width: 4.9 "
• Depth: 9 "
