Abb 3AUA0000058220 ACS355-03U-12A5-4 Frequency Converter

Product Description

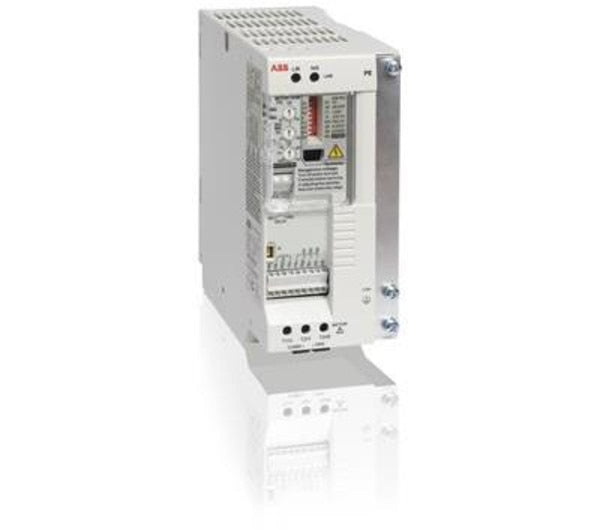

The ABB ACS355-03U-12A5-4, MPN 3AUA0000058220, is a frequency converter designed for OEM machine building. It operates with a 3-Phase Supply Voltage at 480 VAC and a rated output of 11.3 Amps at 50 degrees C. It is suitable for food & beverage, material handling, and printing applications.

• Fast parameter set-up
• Optimized interfaces for users and machines
• Built-in brake chopper as standard

Product Highlights

The ACS355 series is user-friendly and provides high application flexibility. It features sequence programming, unified height and depth, and coated boards as standard.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3AUA0000058220
• Country of Origin: China

Technical Specifications

• Brand: ABB
• MPN: 3AUA0000058220
• Model: ACS355-03U-12A5-4
• Country of Origin: China
• Enclosure: IP20
• Frame: R3
• Mounting: MODULE
• Input Voltage: 400 V - 480 V
• Frequency: 50/60HZ
• Number Of Phases: 3-Phase
• Series Information: ACS355
• Machinery Drive: Sensorless Vector Control
• Output Power, Heavy-Duty Use (UL): 7.5 Hp
• Output Current, Heavy-Duty Use (UL): 12.5 A
• Enclosure Type NEMA: Open Type
• Rating NEMA/IEC: NEMA 1
