Abb 3AUA0000058217 Variable Frequency Drive 3 HP R1 Frame

Product Description

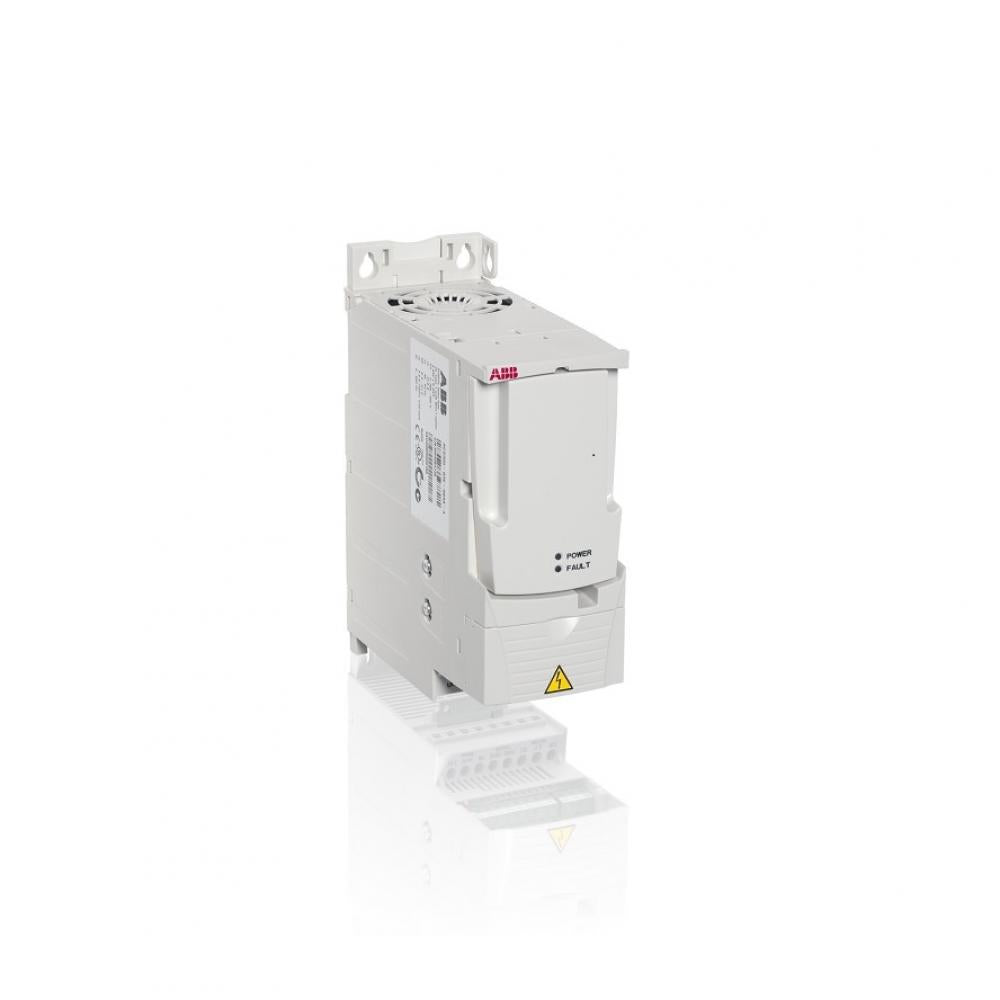

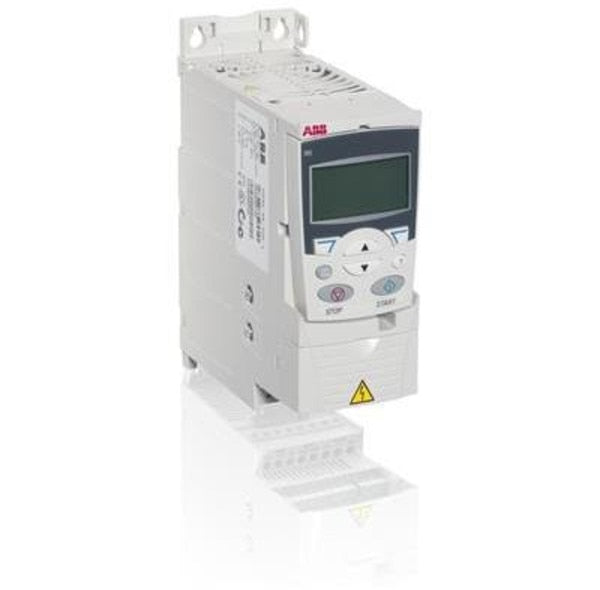

The ABB 3AUA0000058217 is a variable frequency drive with a 3-phase input, operating at 480V AC and 3 HP. Designed for machinery applications, it is suitable for speed and torque control of AC induction and permanent magnet motors. The drive features an IP20 enclosure and is designed for wall mounting.

• Safe torque off functionality
• Sequence programming
• Options and diverse functionality to cater to the needs set for speed and torque control of AC induction and permanent magnet motors

Product Highlights

This ABB drive is designed for a range of machinery applications, offering built-in technology and diverse functionality for speed and torque control.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3AUA0000058217

Technical Specifications

• Manufacturer Part Number: ACS355-03U-05A6-4
• Power Rating: 2.2 KW
• Brand: ABB
• Model: ACS355-03U-05A6-4
• MPN: ACS35503U05A64
• Input Voltage: 380 V
• Rated Load: 3 HP
• Number Of Phases: 3-Phase
• Mfr Catalog Number: 3AUA0000058217
• Model / ID Number: ACS355-03U-05A6-4
• Size: R1
• Rating NEMA/IEC: NEMA 1
• UPC: 43817722392
• Product UPC: 43817722392
• EAN / GTIN: 6438177223924
• Enclosure: IP20
• Frame: R1
• Mounting: MODULE
• PC ID: 245969
• PC W ALT DESC: 480V DRIVE
• PC W ALT DESC ONELINE: 480V DRIVE
• PC W BUY LINE: ABBDRIVE
• PC W COMMODITY CODE: 4121
• PC W DESC: ABB ACS355-03U-05A6-4 3HP 5.6A 3-PH 480VAC R1 3AUA
• PC W ID: 245969
• PC W STK STATUS NUM: 1
• Series: ACS355 Machinery Drive
• Degree of Protection: IP20
• Enclosure Type NEMA: Open Type
• Frequency ( f ): 50/60 Hz
• Input Voltage (U in ): 380 480 V
• Mounting Type: Wall-mounting
• Apparent Power Output: 2.7 kV A
• Efficiency Level: IE2
• Standby Loss: 7 W
• Temperature Rating: Maximum 40 °C
• Output Current, Heavy-Duty Use (UL): 5.6 A
• Output Power, Heavy-Duty Use (UL): 3 Hp
