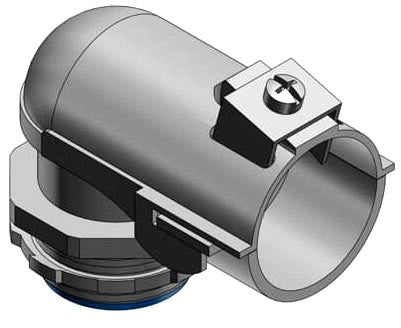

ABB 3139 T&B Cable Angle Connector 1-1/2 in (1-1/2 in Knockout) 3139

Product Description

The ABB 3139 T&B Cable Angle Connector is designed for use with armored cable and flexible metal conduit. This connector features a knockout size of one and one-half inches and cable openings ranging from one point eight one two to two point zero three one inches. It is made from malleable iron and comes electro-zinc plated for durability.

• Ideal for connecting and bonding armored cable or flexible metal conduit to boxes or enclosures.
• Features one-screw connection for easy installation.
• Nylon insulation helps ensure safety and performance.

Product Highlights

The ABB 3139 offers a narrow design that allows it to fit into adjacent knockouts without difficulty. It is built for 90-degree angles and includes a peep hole for easy bushing inspection.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621003139

Technical Specifications

• Application: For armored cable and flexible metal conduit
• Cable Openings: 1.812 to 2.031 in
• Cable Type: AC/FMC
• Connection Type: Angled Saddle/Threaded
• Dimensions: 4 in H
• Finish: Electro-Zinc Plated
• Knockout Size: 1-1/2 in
• Manufacturer Part Number: 3139
• Material: Malleable Iron
• Number of Conductors: 1
• Standards/Approvals: CSA 2884|UL File No. E23018/E1383
• Trade Size: 1-1/2 in
