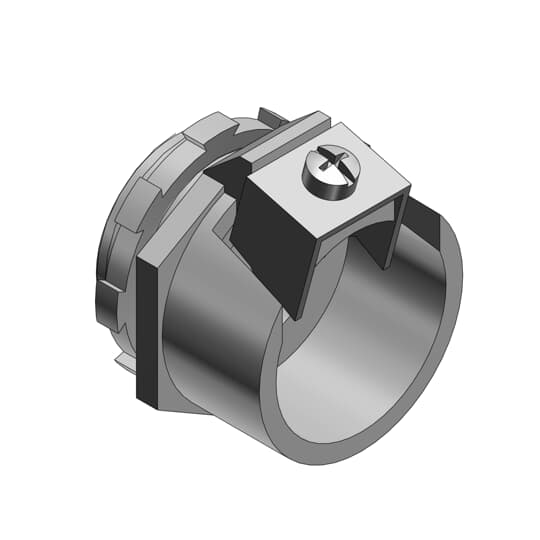

ABB 312 Thomas & Betts 312 2 Inch Straight Non-Insulated Tite Bite Flex Connector

Product Description

The ABB 312 is a 2 inch straight non-insulated Tite Bite flex connector. This connector is designed for use with armored cable and flexible metal conduit. It is made from malleable iron and is electro-zinc plated for durability.

• UL listed for flexible metal conduit only.
• Easy to install with double grip saddle.
• Compatible with metal-clad cables.

Product Highlights

This product is built for reliable connections in electrical systems. The Tite Bite design ensures strong connections, which can help prevent disengagement during usage.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• MPN: 312
• Application: For use to connect and effectively bond metal clad cables, armored cable and flexible metal conduit to a box or enclosure
• Cable Openings: 2.312 to 2.5 in
• Cable Type: AC/FMC
• Color: Metallic
• Connection Type: Straight
• Dimensions: 2-13/16 in W x 3-1/8 in H
• Finish: Electro-Zinc Plated
• Knockout Size: 2 in
• Material: Malleable Iron
• Standards/Approvals: CSA Certified, UL File No. E23018
• Trade Size: 2 in
