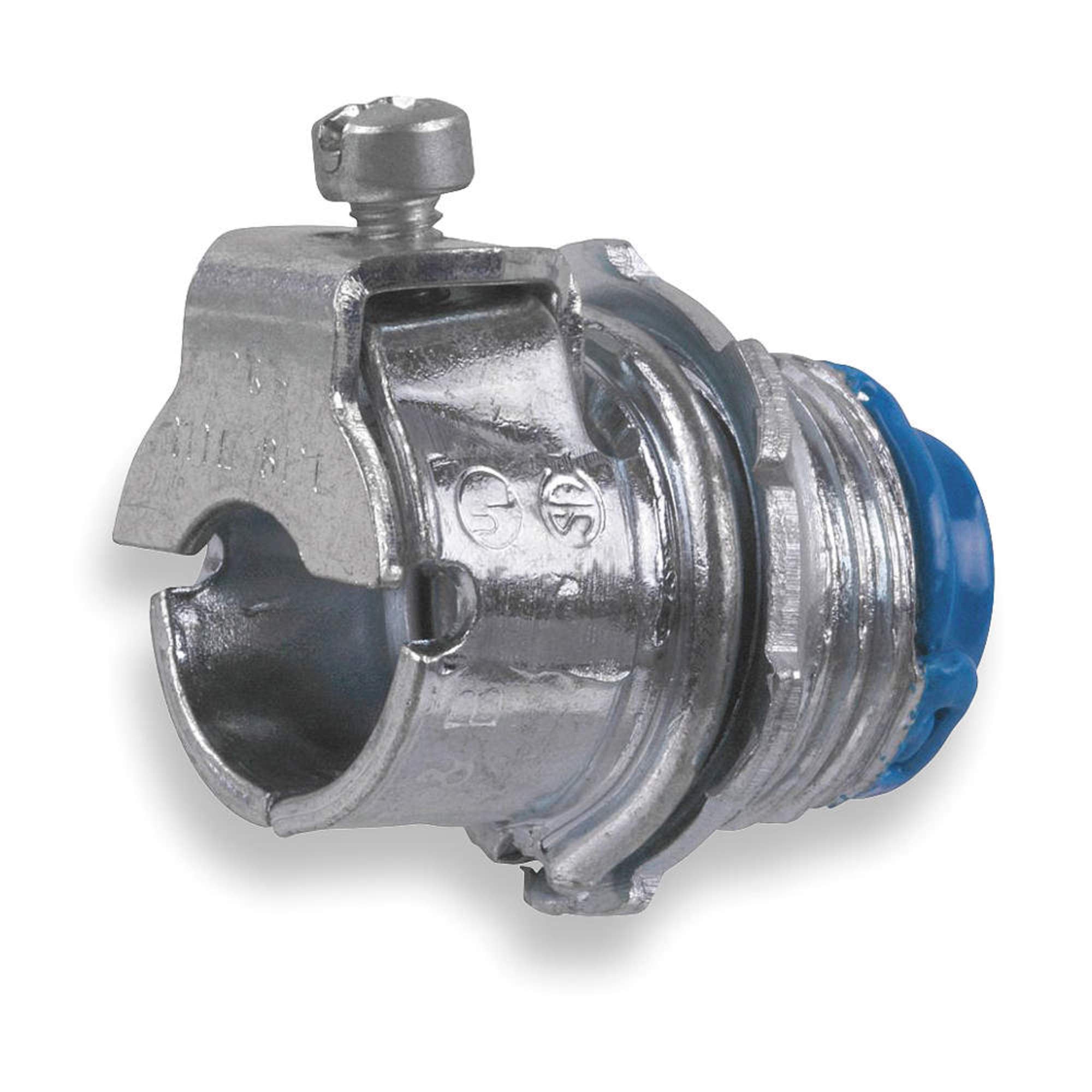

Abb 3110-tb Straight Insulated Flex Connector 3/8 Inch

Product Description

The ABB 3110-tb is a straight, insulated Tite-Bite flex connector designed for terminating armored cable and flexible metal conduit in electrical installations. Built from steel with a zinc-plated finish, this fitting features a nylon insulating throat that protects wire insulation from abrasion at the point of entry. It accepts a trade size of 3/8 inch and is designed to land in a 1/2 inch knockout, with a cable range of 0.470 to 0.660 inches. Licensed electricians and electrical contractors install this type of fitting during rough-in and finish wiring of commercial and residential systems.

This connector is suited for use with Type AC armored cable and flexible metal conduit in both new construction and retrofit applications. The straight configuration makes it appropriate for panel enclosures, junction boxes, and electrical cabinets where the conduit or cable enters perpendicular to the enclosure wall. The nylon insulated throat helps meet code requirements for protecting conductors at fitting entry points. It is rated under CSA 2884 and UL E23018, making it acceptable on projects requiring listed components under those standards.

Key Features

• Straight configuration fits 1/2 inch knockouts using 3/8 inch trade size fittings
• Nylon insulated throat protects wire insulation from abrasion at cable entry
• Steel construction with zinc plating resists corrosion in typical indoor wiring environments
• Accepts cable outside diameters from 0.470 to 0.660 inches
• Listed under CSA 2884 and UL E23018 for use on listed projects

Compatibility

Designed for use with armored cable and flexible metal conduit at 3/8 inch trade size, terminating into 1/2 inch knockouts on enclosures, panels, and junction boxes.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements. De-energize all circuits and verify absence of voltage before opening any enclosure or making fitting connections. Use appropriate cable cutters and conduit reaming tools to prepare the cable end before inserting into the connector. Do not over-tighten the connector body in a way that deforms the nylon insulating insert.

Technical Specifications

• Trade Size: 3/8 inch
• Knockout Size: 1/2 inch
• Cable Range: 0.470 to 0.660 inches
• Connection Type: Straight
• Material: Steel
• Finish: Zinc plated
• Insulation Material: Nylon
• Color: Metallic
• Standards: CSA 2884, UL E23018
• Application: Armored Cable and Flexible Metal Conduit

Standard Information

• Brand: ABB
• Manufacturer Part Number: 3110-tb
