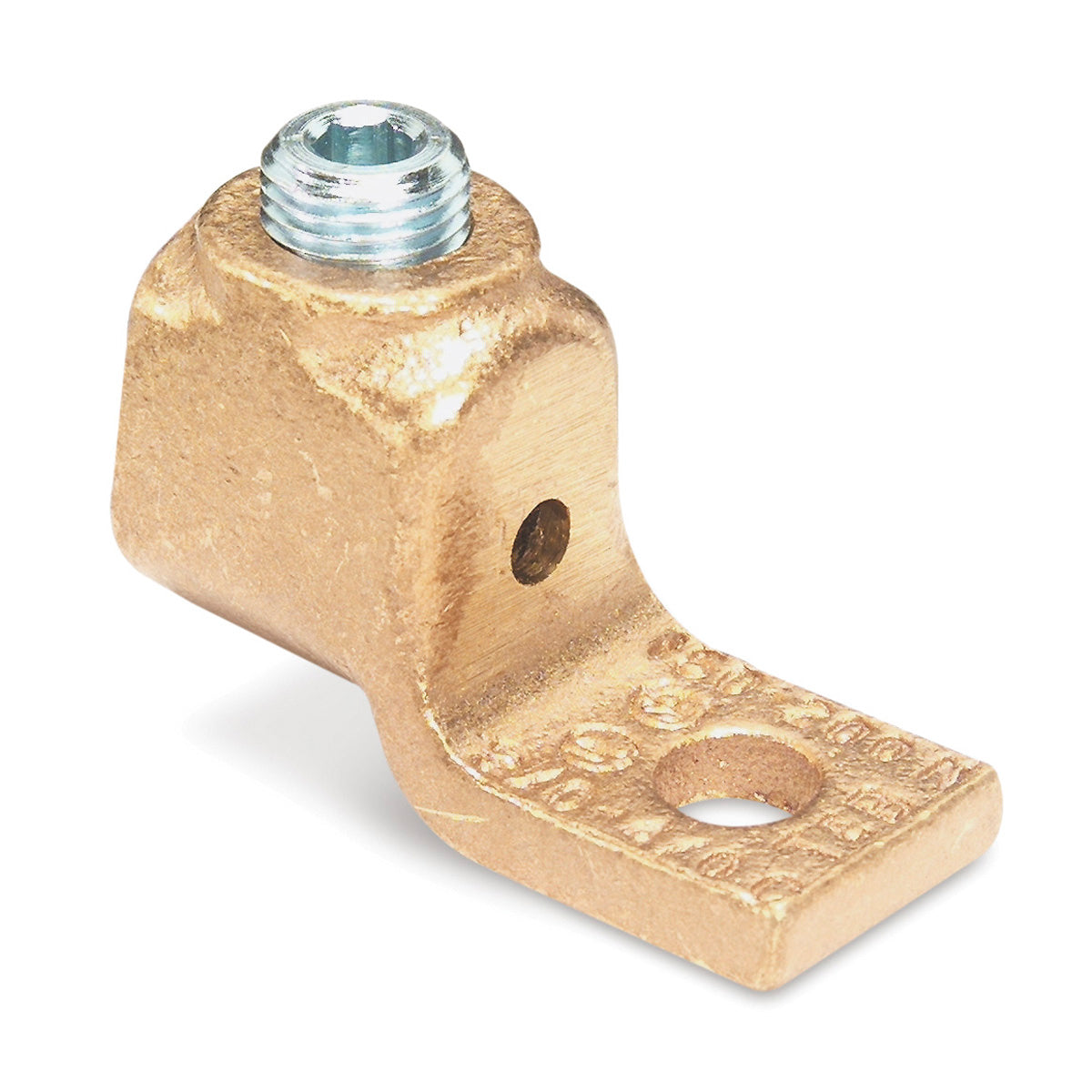

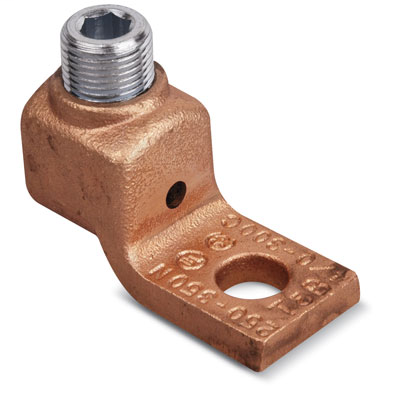

ABB 31003 Blackburn 31003 Lock-Tite Lug 600 Volt (1-Hole) Replacement MPN

Product Description

ABB 31003 Blackburn Lock-Tite Lug is designed for copper conductors ranging from fourteen to eight AWG. This connector lug provides a reliable and efficient connection for various electrical applications. It features a one-hole design suitable for a quarter-inch bolt, ensuring secure fastening.

• Conductor Range: #14 - #8 AWG
• Height: fifteen thirty-seconds inch
• Material: Copper for durability

Product Highlights

This lug is ideal for creating strong, low-resistance electrical connections. Its saddle and cable socket design ensures direct contact with cables, minimizing resistance.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Voltage: 600 Volt
• Conductor Size: 14 to 8 AWG
• Dimensions: 1-1/8 inches L x 1/2 inch W x 15/32 inch H
• Material: Copper
• Number of Bolt Holes: 1
• Stud Size: 1/4 inch
• Tongue Size: 9/16 inch L x 1/2 inch W x 1/8 inch THK
• Applications: For Copper Conductors
