Abb 2TLA050220R1020 Emergency Stop Pushbutton

Product Description

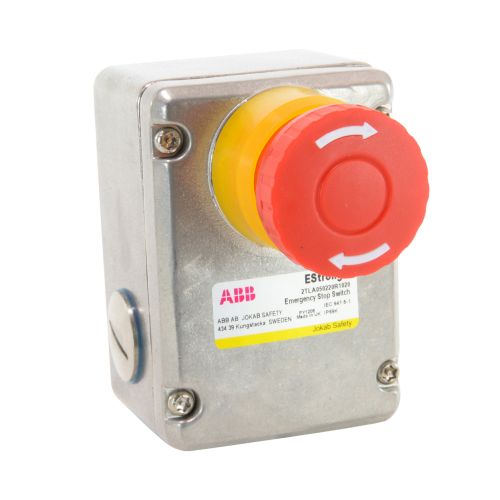

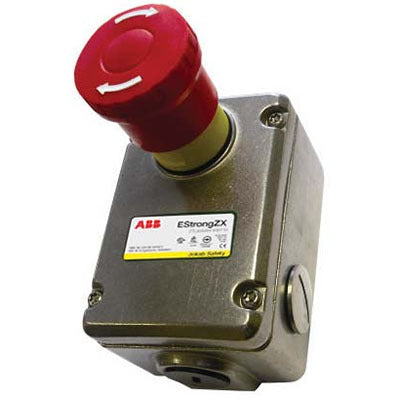

The ABB 2TLA050220R1020 emergency stop pushbutton is a heavy-duty, non-illuminated, twist-to-reset switch from the E-Strong Z series. Measuring 66 mm W x 105 mm D x 94 mm H, it features 2NO-2NC contacts rated at 3 A at 240 VAC. Designed for surface mounting, it is constructed from 316 stainless steel and is unpainted. It is suitable for use in exposed conveyors, machines, food processing, and chemical industries.

• Heavy Duty Non-Illuminated Twist to Reset
• Contact Rating: 3 A at 240 VAC
• Designed to provide robust emergency stop protection

Product Highlights

This emergency stop provides robust protection with a special lid safety trip mechanism and a button protection shroud with padlock holes.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2TLA050220R1020

Technical Specifications

• Brand: ABB
• Part Number #: 2TLA050220R1020
• SKU #: 2348827
• Contact Rating: 3 A at 240 V AC
• Enclosure Type: IP67/IP69K
• Environmental Conditions: -25 to 80 deg C Operating
• Operating Temperature: -25 to 80
• Series: E-Strong Z, EStrong
• Type: Heavy Duty Non-Illuminated Twist to Reset
• UNSPSC: 39121545
• Main function: Control station
• Product series / family name: EStrongZ series
• Functions: Enclosed heavy-duty modular emergency stop (E-stop) mushroom pushbutton/push-button/PB
• Diameter: 40mm mushroom head
• Connection type: term. block and 3 x 1/2" NPT cable entries
• Mounting mode: 4 x M5 screws
• Normally Open (NO) auxliary contacts: 2 NO contacts
• Normally Closed (NC) auxiliary contacts: 2 NC contacts
• Material: Stainless steel 316 (housing)
• Ambient air temperature for operation: -25°C...+80 °C
• Compliant with standard(s): EN62061 ISO13849-1 IEC 947-5-1 IEC 947-5-5 EN 954-1 UL 508 ISO 13850
