Abb 2TLA050040R0202 MKEY 4,5,6,8,9 STD Actuator

Product Description

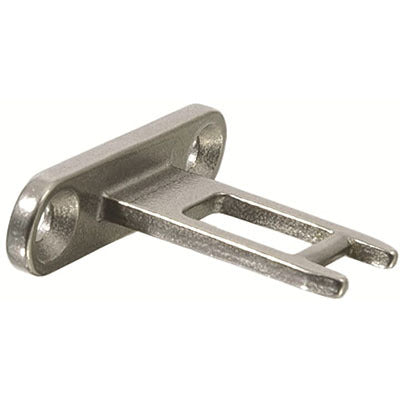

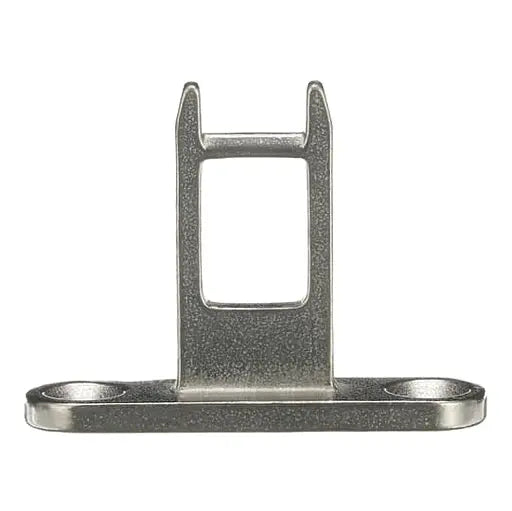

The ABB 2TLA050040R0202 MKEY 4,5,6,8,9 STD Actuator is a standard key for MKey safety switches with a metal head. This actuator key is made of stainless steel 316 and is designed for use with Mkey position safety switches. It is part of the Mkey series from ABB Jokab.

• Standard key for MKey safety switches with metal head
• Key in stainless steel 316
• Standard actuator stainless steel key for Mkey position safety sw. with metal head

Product Highlights

Standard actuator key for MKey safety switches, constructed from stainless steel 316. Compatible with various Mkey position safety switches.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2TLA050040R0202

Technical Specifications

• Category: Safety Accessories
• Type: Actuator
• Product Main Type: Key switch accessory
• Product Class: Accessories for Safety Sensors, Switches, Locks and Gate Boxes
• ETIM 4: EC001044 - Mechanic interlock for switch
• ETIM 5.0: EC001044 - Mechanic interlock for switch
• ETIM 6.0: EC001487 - Actuator for position switch with separate actuator
• ETIM 7: EC001487 - Actuator for position switch with separate actuator
• ETIM 8 (Etim8): EC001487 - Actuator for position switch with separate actuator
• Product Net Depth / Length: 14 mm
• Product Net Height: 40 mm
• Product Net Width: 54 mm
• Product Net Weight: 0.031kg
• Primary brand: ABB
• Secondary brand: Jokab
• Main function: Door lock actuator (Tongue)
• Product series / family name: Mkey series
• Functions: Standard actuator stainless steel key for Mkey position safety sw. with metal head
• Material: Stainless steel (key position)
• Technical compatibility with: Mkey position5 SSH Mkey position5+ SSH Mkey position5Z Mkey position5+Z Mkey position9M 24VDC Mkey position8M 24VDC Mkey position9 24VDC Mkey position9 24VDC No key position Mkey position8 24VDC Mkey position8ER 24VDC Mkey position8Z 24VDC
