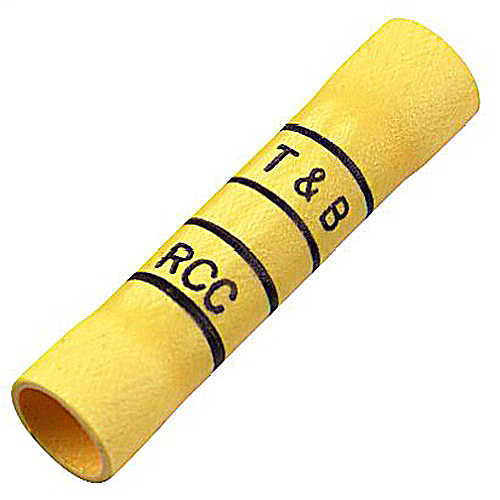

ABB 2RC10X Thomas & Betts Vinyl-Insulated Butt Splice Expanded Insulation

Product Description

The ABB 2RC10X is a vinyl-insulated butt splice designed for wire termination. It is compatible with wire sizes ranging from #12 to #10 AWG. This connector has a length of one point three one inches and a width of zero point thirty-one inches. The maximum insulation diameter is a quarter inch.

• Compatible with #12 to #10 AWG wire
• Electro-tin plated copper construction
• Rated for a maximum voltage of six hundred volts

Product Highlights

This butt splice connects wires securely by crimping them at each end. It is designed for reliability and ease of use.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co.
• Product Type: Butt Splice

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Length: 1.31 inches
• Width: 0.31 inches
• Material: Copper
• Voltage Rating: 600 VAC
• Temperature Rating: 105 degrees C
• Insulation Type: Expanded Insulated Vinyl
• Finish: Electro-TiN Plated
