ABB 2RBS14X T&B Splice Heat-Shr Butt 16-14 LEN 1.5

Product Description

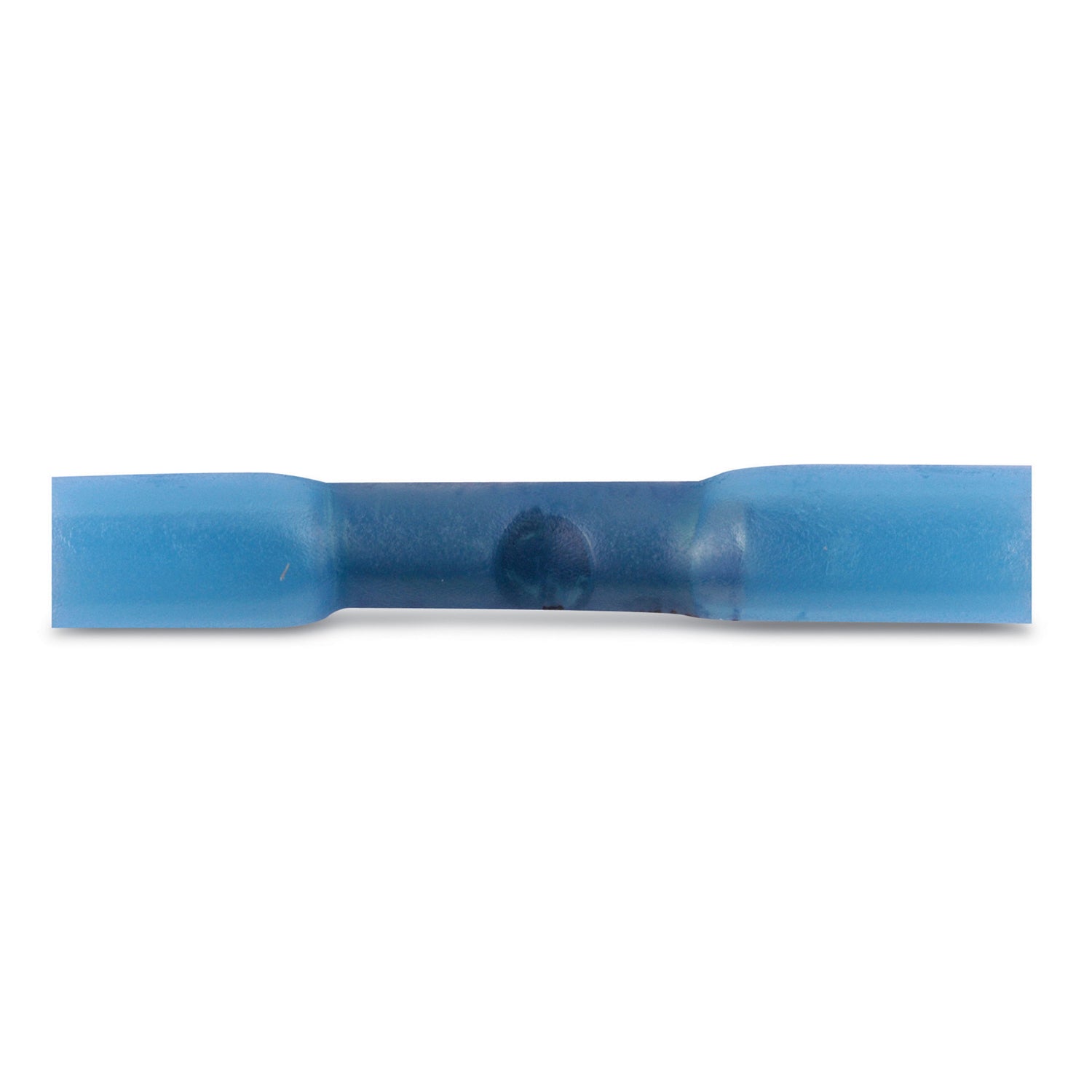

ABB 2RBS14X is a heat shrinkable insulated butt splice connector. It suits conductors from sixteen to fourteen AWG. The length of this connector is one and one-half inches. Designed for applications demanding reliability, it ensures a robust electrical connection.

• Heat shrinkable with electro tin plating
• Self-insulated with heat shrinkable polyolefin
• Provides protection against galvanic action and environmental exposure

Product Highlights

This connector achieves a fully sealed connection to prevent degradation over time. The high-temperature rating offers assurance in different environments.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621070327

Technical Specifications

• Conductor Size: 16 to 14 AWG
• Length: 1.5 inches
• Voltage Rating: 600 VAC
• Temperature Rating: 150 degrees Celsius
• Material: Copper
• Finish: Electro-TiN Plated
• Dimensions: 0.26 inches wide
• Standards/Approvals: CSA Certified, UL 94 V-0 Flammability Rating, UL Listed
