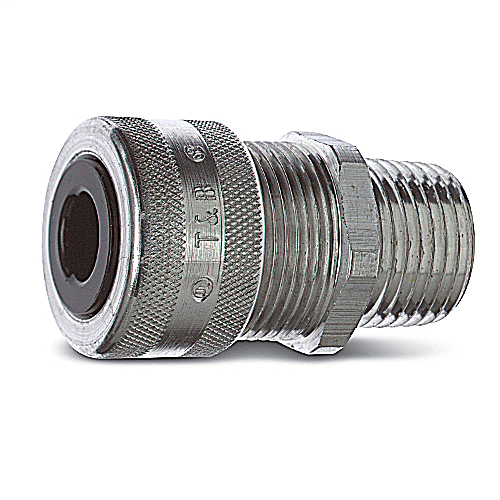

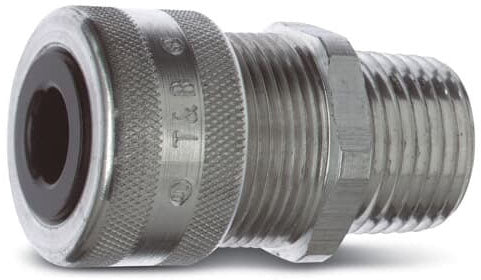

ABB 2942AL Thomas & Betts Cord Range Ranger Aluminum Connector 1 Inch

Product Description

The ABB 2942AL is a liquidtight strain relief connector designed for cord ranges of zero point seven hundred to zero point nine hundred fifty inches. This connector features an aluminum body and provides a secure fit for various applications.

• Extended range for superior strain relief.
• Compact design fits into tighter spaces.
• Gland nut minimizes cable bending.

Product Highlights

This connector is suitable for ordinary, wet, or dry locations. It also meets NEC requirements for hazardous locations. Ideal for passing a cord cable into an enclosure through a bulkhead.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2942AL

Technical Specifications

• Trade Size: 1 inch
• Material: Aluminum
• Application: For passing cord cable into an enclosure
• Cable Openings: 0.7 to 0.95 inches
• Temperature Rating: -4 to 221 degrees F
• Connection Type: Thread
• Dimensions: 2-3/8 inches Long x 1-43/64 inches Wide
• Standards/Approvals: ANSI C33.84, CSA C22.2, UL 514
