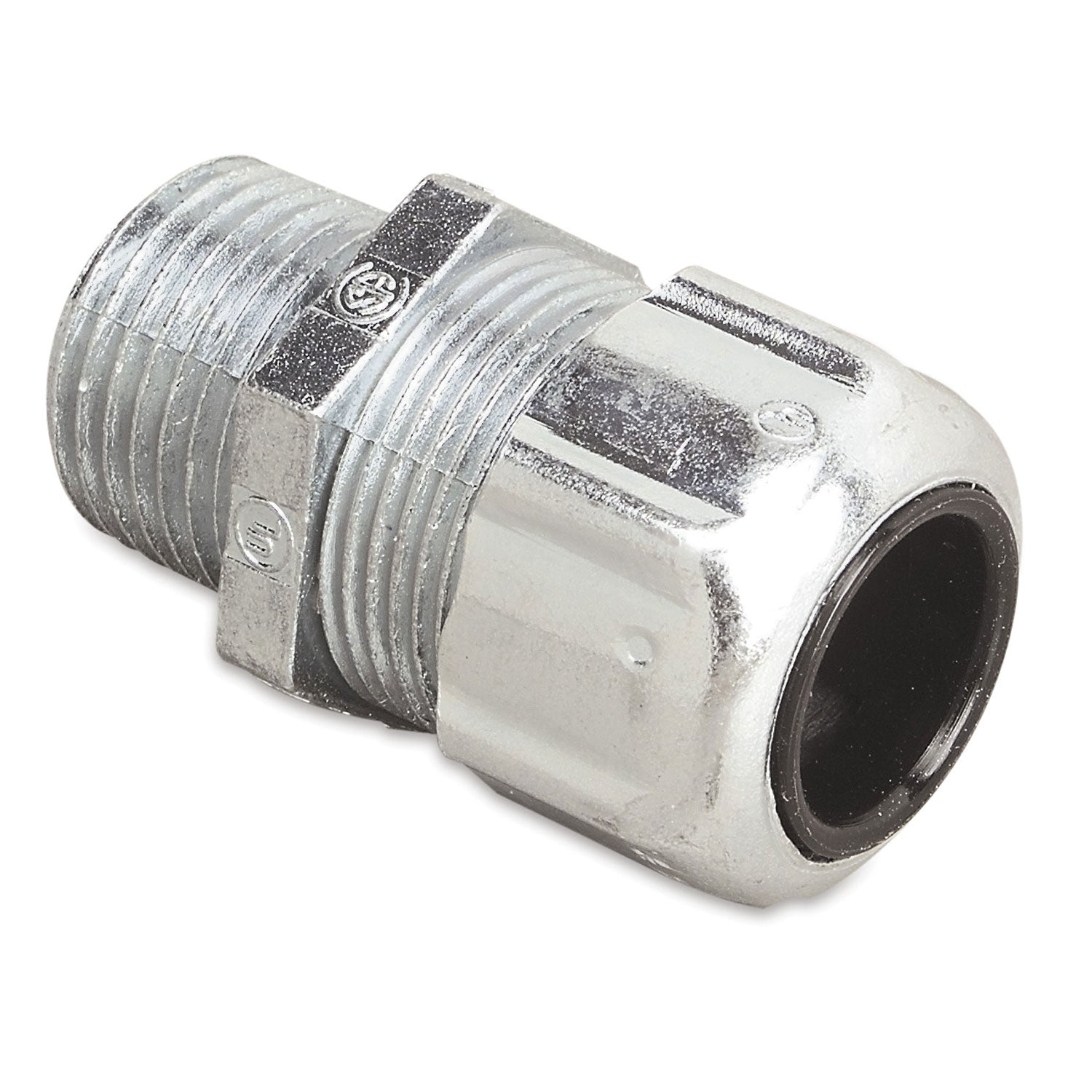

ABB 2941 T&B Strain Relief Connector 1 in Cable Openings 1/2 to 3/4 in

Product Description

The ABB 2941 T&B Strain Relief Connector is designed for liquidtight strain relief applications. This product features a series design called Ranger. It accommodates cable openings ranging from one-half inch to three-fourth inch. The connector is made from steel and is zinc plated for durability.

• Extended range for superior strain relief
• Suitable for wet or dry locations
• Designed for ordinary and hazardous locations

Product Highlights

This strain relief connector allows you to pass a cord cable into an enclosure through a bulkhead. Its compact design is ideal for tight spaces, making it a practical choice for many electrical applications.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621002941

Technical Specifications

• Application: For passing a cord cable into an enclosure through a bulkhead and in ordinary, wet, or dry locations
• Cable Openings: 1/2 to 3/4 in
• Cable Type: S/SO
• Color: Metallic
• Connection Type: Thread
• Dimensions: 1-3/4 in L x 1-3/8 in W
• Finish: Zinc Plated
• Includes: Gland Nut, Grip and Rubber Bushing
• Material: Steel
• Series: Ranger
• Standards/Approvals: ANSI C33.84|ANSI NFPA 70-1978|CSA C22.2 File No. 18|CSA File No. LR589/LR4484/52391|UL 514 File No. E13938
• Trade Size: 1 in
• Type: Liquidtight Strain Relief
