Product Description

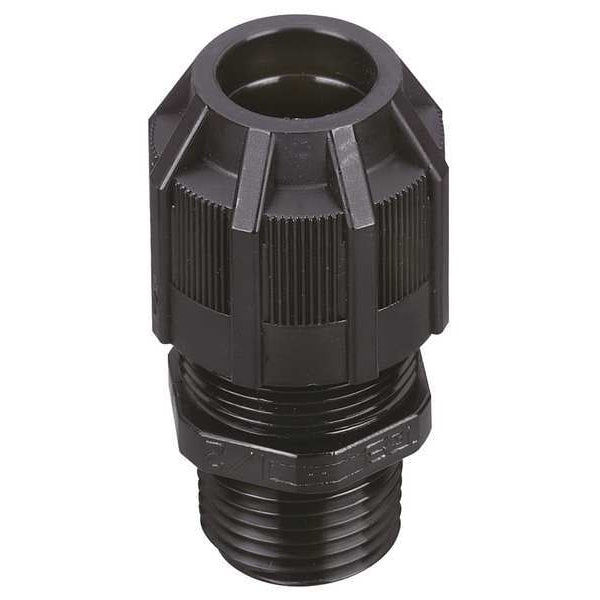

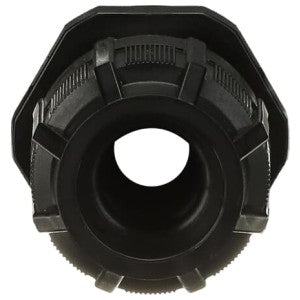

The ABB 2940NM is a straight non-metallic liquidtight cord connector made of nylon with a rubber bushing. It provides a mechanical grip and water and oil-resistant seal for cords. It takes twice the cable range of most ordinary strain relief connectors, and the sturdy nylon adds corrosion resistance to installation.
- Extended range with superior strain relief
- Reduced overall size, fits into tighter spaces
- Gland nut designed to restrict cable bending
Product Highlights
This liquidtight strain relief connector has a UV-resistant polyamide body and is suitable for passing a cord into an enclosure or through a bulkhead.
Product Information
Standard Information
-
Brand: ABB
-
Manufacturer Part Number: 2940NM
-
Country of Origin: US - United States
Technical Specifications
-
Thread Size: 1" NPT
-
Cable Diameter Min: 0.31"
-
Cable Diameter Max: 0.56"
-
Cable Gland Material: Nylon 6 (Polyamide 6)
-
Gland Colour: Black
-
IP / NEMA Rating: Not Rated
-
Application: Used to provide means for passing a cord into an enclosure or through a bulkhead or into a rigid conduit, form a mechanical grip and water and/or oil-resistant seal for cord, form a non-slip connection or termination for flexible cord
-
Brand: ABB
-
Bushing Material: Rubber
-
Cable Clamping Range: 0.310 to 0.560 in.
-
Diameter: 0.98 in
-
Dimensions: 1.41 in H
-
Family Name: T&B Cord Fittings
-
Manufacturer Part Number: 2940NM
-
Material: Nylon
-
Mounting Hole Size: 1 in
-
Overall Length: 2.344 in
-
Protection: IP 68 Rating
-
Protection Class: Connector, Strain Relief
-
Seal Material: NBR (N) Rubber
-
Series: 2900 Series
-
Standards: UL listed, CSA 52391, UL E13938
-
Temperature Range: -34 to 105 C
-
Thread Length: 0.781 in.
-
UPC Code: 786210797465
-
Use With: Ordinary, Wet or Dry Locations
-
Box Connection: 1 in MNPT
-
Strain Relief Type: No External Strain Relief
-
Insulated: Yes
-
Number of Cords: 1
-
Style - Connector: Straight
-
Connector Type: Straight
-
Material - External Strain Relief: No External Strain Relief
-
Color: Black
-
Body Color - Cord Connector: Black
-
Hazardous Location Rating: Not Rated
-
Gland Color Code: No Code
-
Item - Cord Connector: Liquid Tight Cord Connector
-
For Use With: Cable Gland Connector
-
Compatible Conduit Type: Liquid Tight Cord Connector with Strain Relief
-
Liquid Tight: Yes
-
Collar Material: Nylon
-
Environmental Rating: Dry, Wet
-
Minimum Operating Temperature: -29 Degrees F
-
Maximum Operating Temperature: 221 Degrees F
-
Body Color: Black
-
Thread Gender: Male
-
Thread Type: NPT Thread
-
Grommet Color Code: No Code
-
Body Material: Nylon
-
Connection Orientation: Straight
-
IP Rating: IP65
-
For Minimum Cable OD: 0.31 in
-
For Maximum Cable OD: 0.56 in
-
Special Features: Extended Range with Superior Strain Relief
-
Colour: Black
-
Type: Cord Connectors-Straight
-
Temperature Rating: -34 to +105 Degrees C
-
Operating temperature: -34-+105 C
-
Standard: UL E13938, CSA 52391
-
Conductor Range: 0.310 Inch/7.9mm to 0.560 Inch/14.2mm
-
Degree of protection (IP): IP65
-
Material quality: Polyamide (PA)
-
Environmental Conditions: Ordinary, Wet, or Dry Locations
-
Strain relief: Y
-
Length - Box to End of Connector: 1 9/16 in
-
Cord Dia. Range: 0.31 in to 0.56 in
-
Conduit Size: 1"
-
Length - External Strain Relief: No External Strain Relief
-
Hub Size: 1 in MNPT
-
Compatible Conduit Trade Size: 1 in
-
Nominal thread size inch/gas pipe thread: 1 inch
-
Suitable for cable diameter: 7.9-14.2mm
-
Thread length: 19.84mm
-
Size: 1 Inch
-
Features: Liquid Tight Cord Connector, Cord Dia. Range 0.31 in to 0.56 in
-
TC Connection: NPT
-
Trade Size: 1 Inch
