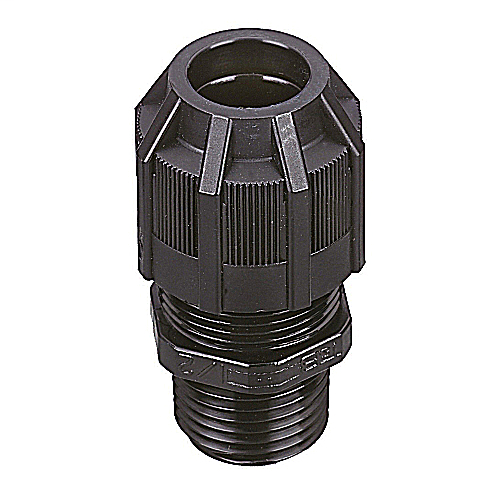

ABB 2931NM Ranger Liquidtight Strain Relief Connector 3/4 Inch

Product Description

The ABB Ranger 2931NM is a liquidtight strain relief connector designed for a cable range of zero point three ten inches to zero point five sixty inches. This connector features a straight design with a three-quarter inch NPT thread. It is suitable for various applications, including ordinary, wet, or dry locations. The nylon body offers UV resistance, making it durable for outdoor use.

• Extended range for superior strain relief
• Reduced overall size for confined spaces
• IP65 rated for protection against dust and water

Product Highlights

This connector is essential for passing cord cables into enclosures through a bulkhead, ensuring a reliable and secure connection.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2931NM

Technical Specifications

• Type: Liquidtight Strain Relief
• Material: Nylon 6.6
• Temperature Rating: -34 to 105 degrees C
• Trade Size: 3/4 Inch
• IP Rating: IP65
• Cable Openings: 0.31 to 0.56 inches
• Connection Type: NPT/Straight
• Dimensions: 1-13/32 inches diameter x 2-3/16 inches length
• Standards/Approvals: UL E13938 Listed, CSA Certified
