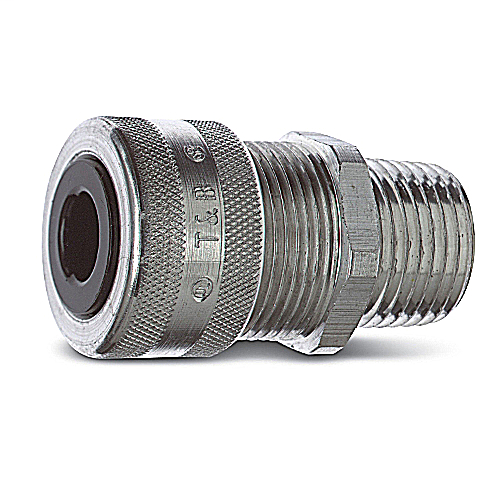

ABB 2931AL Thomas & Betts 2931AL 3/4 Inch Hub Size Liquidtight Strain Relief Connector

Product Description

The ABB 2931AL is a liquidtight strain relief connector made from aluminum, designed for use with cables ranging from zero point three one zero to zero point five six zero inches. This connector is ideal for providing a secure passage for cord cables into enclosures and is suitable for ordinary as well as wet or dry locations.

• Usage for passing cord cables through bulkheads.
• Thread connection type for easy installation.
• Designed for hazardous locations permitted by NEC standards.

Product Highlights

The ABB 2931AL connector simplifies installation by combining various range options into a single product, reducing the need for multiple connectors.

Product Information

Standard Information

• Brand: ABB
• Manufacturer: Thomas & Betts Co

Technical Specifications

• Trade Size: 3/4 inch
• Type: Liquidtight Strain Relief
• Material: Aluminum
• Cable Openings: 0.31 to 0.56 inch
• Dimensions: 2-3/16 inch L x 1-13/32 inch W
• Temperature Rating: -4 to 221 degrees F
• Connection Type: Thread
• Standards: ANSI C33.84, ANSI NFPA 70-1978, CSA C22.2 File No. 18, UL 514 File No. E13938
