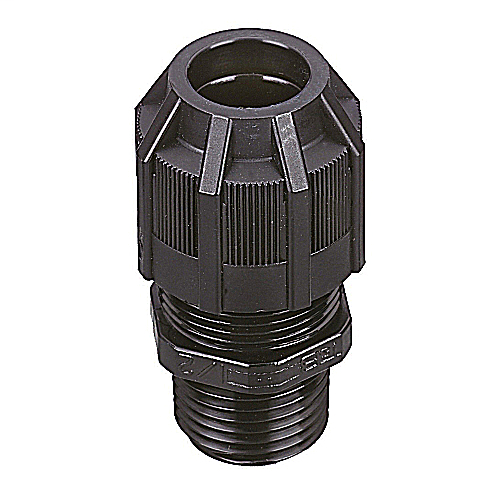

ABB 2922NM Thomas & Betts 1/2 Inch Liquidtight Strain Relief Connector

Product Description

ABB 2922NM is a liquidtight strain relief connector. It features a straight design with a half-inch NPT thread and accommodates a cable range from .500 inch to .750 inch. The connector is made from UV resistant polyamide body, classified with an IP65 rating for protection against water and dust.

• Extended range for strain relief
• Suitable for ordinary, wet, or dry locations
• Designed for easy installation with NPT connection

Product Highlights

Ideal for use in electrical installations that require passing cords into enclosures. The ABB 2922NM provides a reliable solution to maintain integrity and safety of electrical systems.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2922NM

Technical Specifications

• Type: Liquidtight Strain Relief
• Color: Black
• Material: Nylon 6.6/Polyamide
• Temperature Rating: -34 to 105 degrees C
• Dimensions: 1-13/32 inches diameter x 2-5/32 inches length
• Cable Openings: 1/2 to 3/4 inches
• IP Rating: IP65
• Trade Size: 1/2 inch
