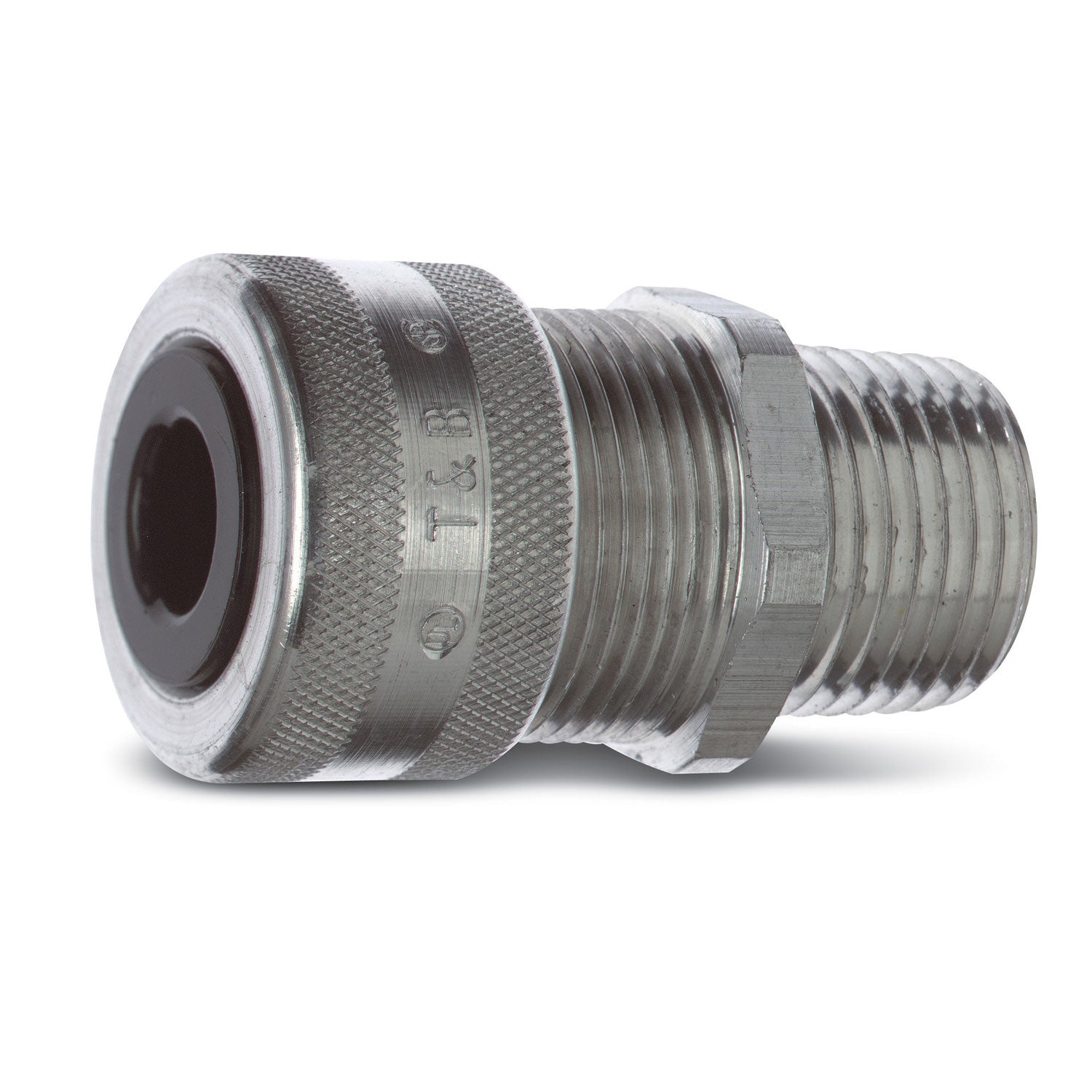

ABB 2920AL T&B 1/2IN Ranger Alum Cord Conn

Product Description

The ABB 2920AL is a T&B Cord Connector designed for liquidtight strain relief. This connector fits cables with openings ranging from one-eighth inch to three-eighths inch. Its sturdy aluminum construction makes it suitable for both ordinary and hazardous locations.

• Extended range with superior strain relief
• Compact design for tighter spaces
• Aluminum gland nuts with neoprene gasket

Product Highlights

The Ranger Series offers a unique solution for securing flexible cords or power cables to boxes and enclosures. It includes a gland nut to minimize cable bending.

Product Information

Standard Information

• Application: For securing flexible cord to a box or enclosure, providing strain relief in ordinary and wet or dry locations
• Manufacturer: ABB - Installation Products

Technical Specifications

• Cable Openings: 1/8 to 3/8 inches
• Trade Size: 1/2 inches
• Dimensions: 2-1/8 inches long x 1-7/32 inches wide
• Material: Aluminum
• Temperature Rating: -4 to 221 degrees Fahrenheit
• Connection Type: Thread
• Standards/Approvals: ANSI C33.84, ANSI NFPA 70-1978, CSA C22.2 File No. 18, UL 514 File No. E13938
