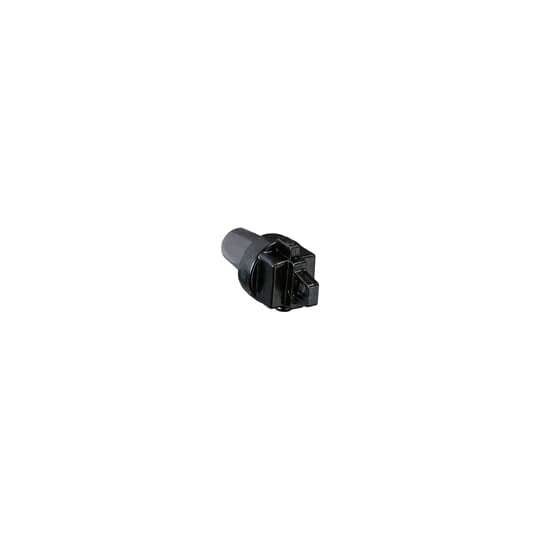

ABB 276 ABB Elastimold 276 Series Loadbreak Elbow 200 A 25 kV Replacement MPN
Availability:
Out Of Stock
- Call for Pricing Call for pricing (215) 326-9845
- Call for Pricing Call for pricing (215) 326-9845
- Unit price
- / per
✓
Better Price in Cart
Manufacturer pricing rules prevent us from advertising our discount — no account or email required to see it.
-
Secure Payments
-
Easy Returns
-
Expert Advice
-
Fast Shipping
Product DescriptionThe ABB Elastimold 276 Series Loadbreak Elbow is a connection solution rated for 200 Amps and 25 kV. This elbow is compatible with conductor sizes ranging from 4/0 AWG to 250 kcmil. It serves as a fully shielded and submersible insulating plug for safe de-energized operation.
- Rated for 15/25 kV applications
- Compatible with various conductor sizes
- Compliant with ANSI/IEEE 386 standards
Product Highlights
This elbow is efficient for use in testing and maintenance situations. It ensures proper insulation and safety during disconnection.Product Information
Standard Information
-
Brand: ABB
-
MPN: 276
Technical Specifications
Amperage
200 A
Voltage
25 kV
Conductor Size Stranded
4/0 AWG
Conductor Size Solid
250 kcmil
Conductor Type
Compacted or Solid, Stranded or Compressed
Maximum Cable Insulation Diameter
1.31 inches
Minimum Cable Insulation Diameter
1.09 inches
Standards
ANSI/IEEE 386
Includes
Bi-metal compression lug, crimp chart, installation instruction, probe, probe wrench, tube
Connection Points
Test Point
Material
EPDM Rubber
Temperature Rating
-40 to +65 C
Size
Length 5.55 inches, Width 2.78 inches
- Rated for 15/25 kV applications
- Compatible with various conductor sizes
- Compliant with ANSI/IEEE 386 standards
Product Highlights
This elbow is efficient for use in testing and maintenance situations. It ensures proper insulation and safety during disconnection.Product Information
Standard Information
- Brand: ABB
- MPN: 276
Technical Specifications
