Product Description

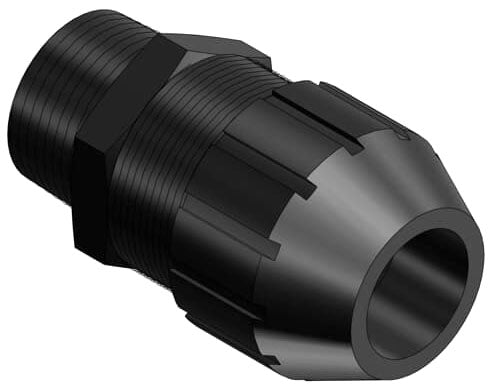

The ABB 2702 is a T&B Black Beauty Cord Connector. It is designed for liquidtight strain relief. This connector has an opening range of zero point eight nine to one point zero nine inches. The trade size is one and one-quarter inches. The material used is nylon, providing durability and resistance.
- Hand tightens, no tools needed for assembly
- Segmented chuck provides high mechanical pullout performance
- Suitable for use in hazardous locations as per NEC standards
Product Highlights
The connector is equipped with neoprene bushings that ensure a secure installation and maintains integrity in various environments.
Product Information
Standard Information
-
Manufacturer: ABB - Installation Products
-
UPC: 78621002702
Technical Specifications
-
Application: For connecting flexible cord to a box or enclosure and provide adequate strain relief
-
Cable Openings: 0.89 to 1.09 inches
-
Color: Black
-
Connection Type: Thread
-
Dimensions: 4.2 inches L x 2.58 inches W
-
Manufacturer Part Number: 2702
-
Material: Nylon
-
Standards/Approvals: Coast Guard CG293, CSA File No. 52391, UL94 V-2 Flammability Rated, UL File No. E13938
-
Temperature Rating: -34 to 105 degrees Celsius
-
Trade Size: 1-1/4 inches
-
Type: Liquidtight Strain Relief
