Abb 2685 Cable Gland NPT 1 in (0.660-0.780 in)

Product Description

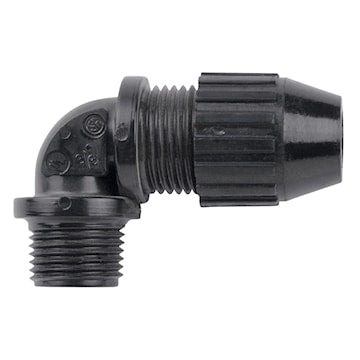

The ABB 2685 liquidtight cord connector connects 0.660 to 0.780 inch cable to 1 inch hub. The connector has strain relief and a 90° bend. It is constructed of nylon and meets Coast Guard CG293 standards. It is suitable for hazardous locations.

• Liquid tight
• Strain relief
• 90° bend

Product Highlights

The ABB 2685 cord connector provides a liquid-tight seal and strain relief for flexible cords. Its nylon construction ensures durability, and its 90° bend allows for easy installation in tight spaces.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2685
• Country of Origin: US - United States

Technical Specifications

• UNSPSC Code: 26120000
• Accepted Cable Diameter: 0.660-0.780 in
• Brand: ABB
• Bushing Material: Neoprene
• Manufacturer Part Number: 2685
• Material: Nylon
• Series: NBBG-R90 Series
• Standards: UL listed, UL E13938, CSA
• Thread Size: NPT 1 in
• Unit of Measure: EA
• UPC Code: 786210026855
• ECCN: EAR99
• UNSPSC: 39121431
• Bend: 90
• Item Name: Liquidtight Strain Relief Cord Connector
• Type: 90°
• Trade Size: 1 in
• Conductor Size: 0.66 - 0.78 in
• Thread Length: 19.55 mm
• Thread Type: NPT
• Temperature Rating: -34 to 105 °C
• Includes: Sealing Ring, Locknut
• Application: Used to Connect Flexible Cord to a Box or Enclosure and Provide Adequate Strain Relief
• Operating Temperature: -34 TO 105 DEG C
• Approval: UL 514B, CSA C22.1/C22.2-18.3
• Diameter Size: 1-27/32 INCH
• Applicable Standard: ANSI C33.84, NFPA 70
• Product UPC: 78621002685
• Cord Size: 0.66 TO 0.78 INCH
• RoHS Compliant: ROHS COMPLIANT
