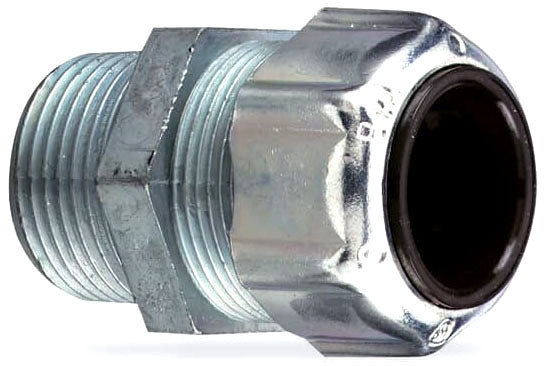

ABB 2594 T&B CORD GRIP CONNECTOR Power 3 in Replacement MPN

Product Description

The ABB 2594 T&B Cord Grip Connector is designed for use where flexible cable connections are needed. This liquidtight connector accommodates cable openings ranging from two point five three five inches to two point seven five inches. It is made from malleable iron and features a zinc plated finish for enhanced durability.

• Liquidtight installation due to neoprene bushing
• Compatible with S/SO/SV/ST/STD/SJ/SJO/SJT/SJTO/SVD cable types
• Thread connection type

Product Highlights

This connector is suitable for hazardous locations and meets multiple industry standards, offering reliability in challenging environments.

Product Information

Standard Information

• Manufacturer: ABB - Installation Products
• UPC: 78621002594

Technical Specifications

• Application: For hazardous locations where general purpose equipment is specifically permitted by NEC 501-4(B)
• Cable Openings: 2.535 to 2.75 inches
• Cable Type: S/SO
• Color: Metallic
• Connection Type: Thread
• Dimensions: 4-1/4 inches Dia x 3-15/16 inches L
• Finish: Zinc Plated
• Manufacturer Part Number: 2594
• Material: Malleable Iron
• Series: Ranger®
• Standards/Approvals: ANSI NFPA 70-2008|Coast Guard CG293|CSA C22.2 File No. 18.3|UL 514B File No. E13938
• Temperature Rating: 105 deg C
• Trade Size: 3 inches
• Type: Liquidtight
