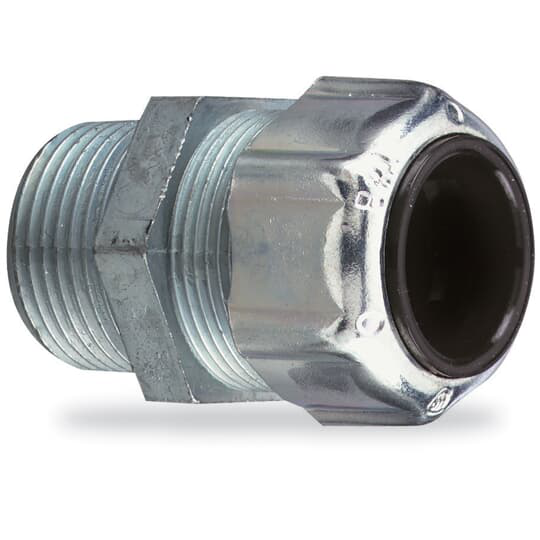

ABB 2592 Thomas & Betts 3 Straight General Purpose Cable Gland - Cord Range 2.156 to 2.360

Product Description

The ABB 2592 Thomas & Betts cable gland is a liquidtight strain relief cord connector. It is designed for cord ranges from two point one five six to two point three six inches. This connector is made of malleable iron and is suitable for hazardous locations as per NEC standards. It meets various certifications including CSA and UL.

• Compatible with S/SO cable types.
• Meets Coast Guard CG293 standards.
• Temperature rating up to 105 degrees Celsius.

Product Highlights

ABB 2592 is essential for ensuring a secure and reliable connection in electrical systems where moisture or contaminants are present.

Product Information

Standard Information

• Brand: ABB
• Manufacturer Part Number: 2592

Technical Specifications

• Type: Liquidtight
• Color: Metallic
• Material: Malleable Iron
• Thread Type: NPT
• Temperature Rating: 105 degrees C
• Trade Size: 3 in
• Dimensions: 4-1/4 in Dia x 3-15/16 in L
• Standards/Approvals: ANSI NFPA 70-2008, Coast Guard CG293, CSA C22.2 File No. 18.3, UL 514B File No. E13938
• Cable Openings: 2.156 to 2.36 in
